Shimano BR-U8020 SHIMANO CUES

BR-U8020 SHIMANO CUES BR Brake - Bremse

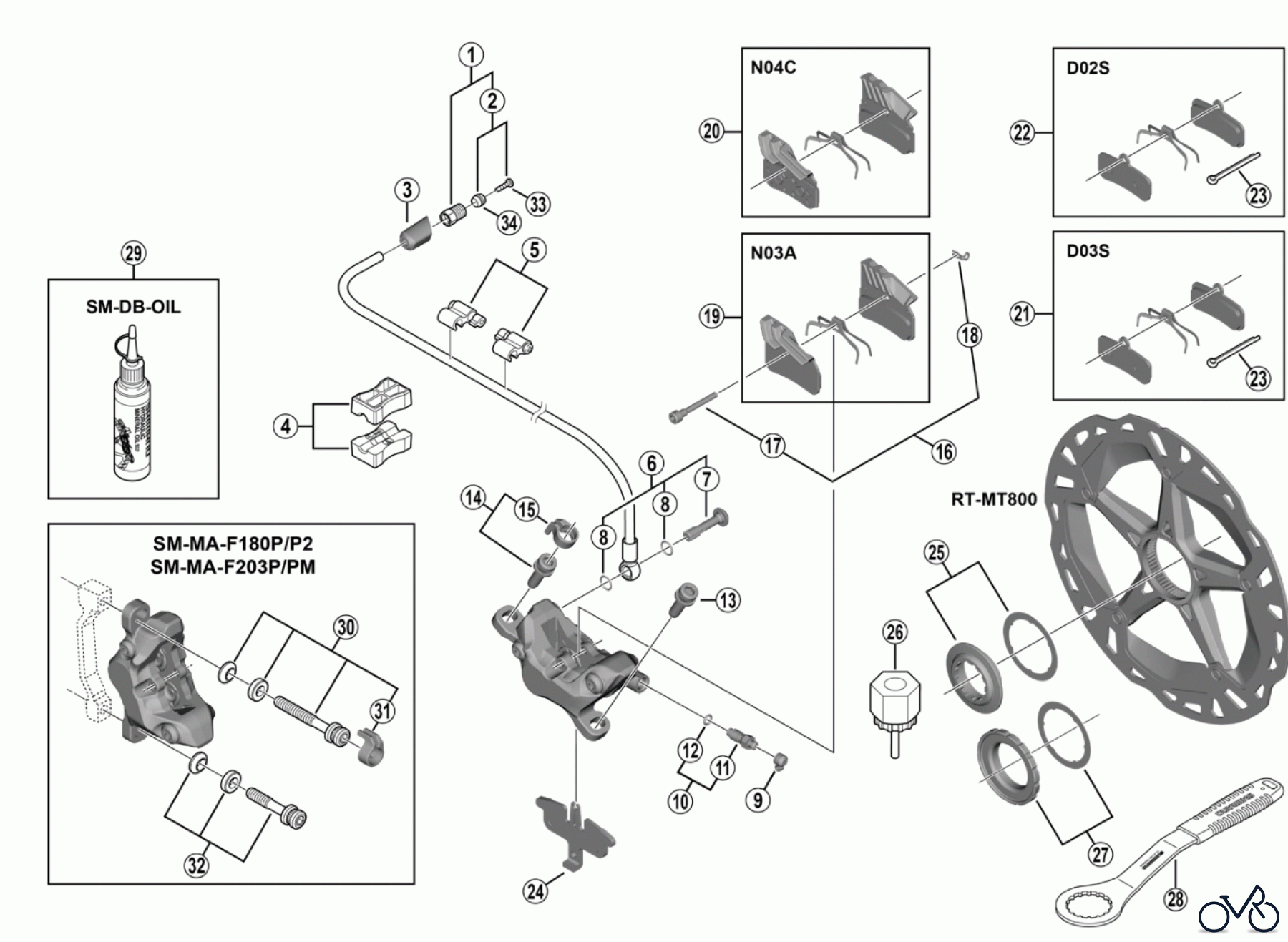

Vous trouverez ici le dessin des pièces détachées pour Shimano BR Brake - Bremse BR-U8020 SHIMANO CUES. Sélectionnez la pièce détachée pour vélo désirée dans la liste des pièces détachées pour votre Shimano vélo et commandez simplement en ligne. Nous avons toujours beaucoup de pièces détachées Shimano en stock pour vous.

Pos.	Numéro d'article	Description
1	Y-8JA98010	Flare nut unit Y8JA98010
2	Y-8JA98020	Olive and connecter insert Y8JA98020
3	Y-2R09801T	R.H. Cover Y2R09801T
3	Y-2R09802T	L.H. Cover Y2R09802T
4	Y-8H198030	TL-BH61 Shimano original tool (2 pcs.) Y8H198030
5	Y-83098040	SM-HANG Hose supporter A and B Y83098040
6	Y-2RV98010	Banjo screw and O-ring Y2RV98010
7	Y-2RV06000	Banjo screw Y2RV06000
8	Y-8SY28000	O-ring Y8SY28000
9	Y-8B214000	Bleed nipple cap Y8B214000
10	Y-8CL98050	Bleed nipple and seal ring Y8CL98050
11	Y-8CL24200	Bleed nipple Y8CL24200
12	Y-8B511001	O-ring for bleed nipple Y8B511001
13	Y-8C509020	Caliper fixing screw (M6 x 18.7) Y8C509020
14	Y-2F398020	Caliper fixing screw (M6 x 18.7) and snap ring Y2F398020
15	Y-2RT06000	Snap ring Y2RT06000
16	Y-8JZ98010	Pad axle and snap retainer Y8JZ98010
17	Y-8JZ05000	Pad axle Y8JZ05000
18	Y-8J716000	Snap retainer Y8J716000
19	E-BPN03ARFA	N03A Resin pad with fin and spring (pair) EBPN03ARFA
20	I-BPN04CMFA	N04C Metal pad with fin and spring (pair) IBPN04CMFA
21	E-BPD03SRXA	D03S Resin pad and spring with split pin (pair) EBPD03SRXA
22	I-BPD02SMXA	D02S Metal pad and spring with split pin (pair) IBPD02SMXA
23	Y-8DB06100	Split pin Y8DB06100
24	Y-1Y003000	Pad spacer Y1Y003000
25	Y-8K198010	Lock ring and washer Y8K198010
26	Y-12009230	TL-LR15 Lock ring removal tool Y12009230
27	Y-2A598030	Lock ring and washer (external spline type) Y2A598030
28	Y-13098000	TL-FC36 Lock ring removal tool Y13098000
29	Y-83998020	Mineral oil (100 ml) Y83998020
29	Y-83998030	Mineral oil (500 ml) Y83998030
30	Y-2RT98020	Caliper fixing screw unit (M6 x 37.9) for SM-MA-F180P/P2 Y2RT98020
30	Y-2RT98030	Caliper fixing screw unit (M6 x 40.2) for SM-MA-F203P/PM Y2RT98030
31	Y-2RT07000	Snap ring Y2RT07000
32	Y-8G498030	Caliper fixing screw unit (M6 x 32.1) for SM-MA-F180P/P2 Y8G498030
32	Y-8J498020	Caliper fixing screw unit (M6 x 34.4) for SM-MA-F203P/PM Y8J498020
33	Y-8JA98026	Connecting insert (100 pcs.) Y8JA98026
34	Y-8H298047	Olive (100 pcs.) Y8H298047
