Shimano RH-IM11

RH-IM11 RH Rollerbrake Hub - Rollenbremse/Nabe

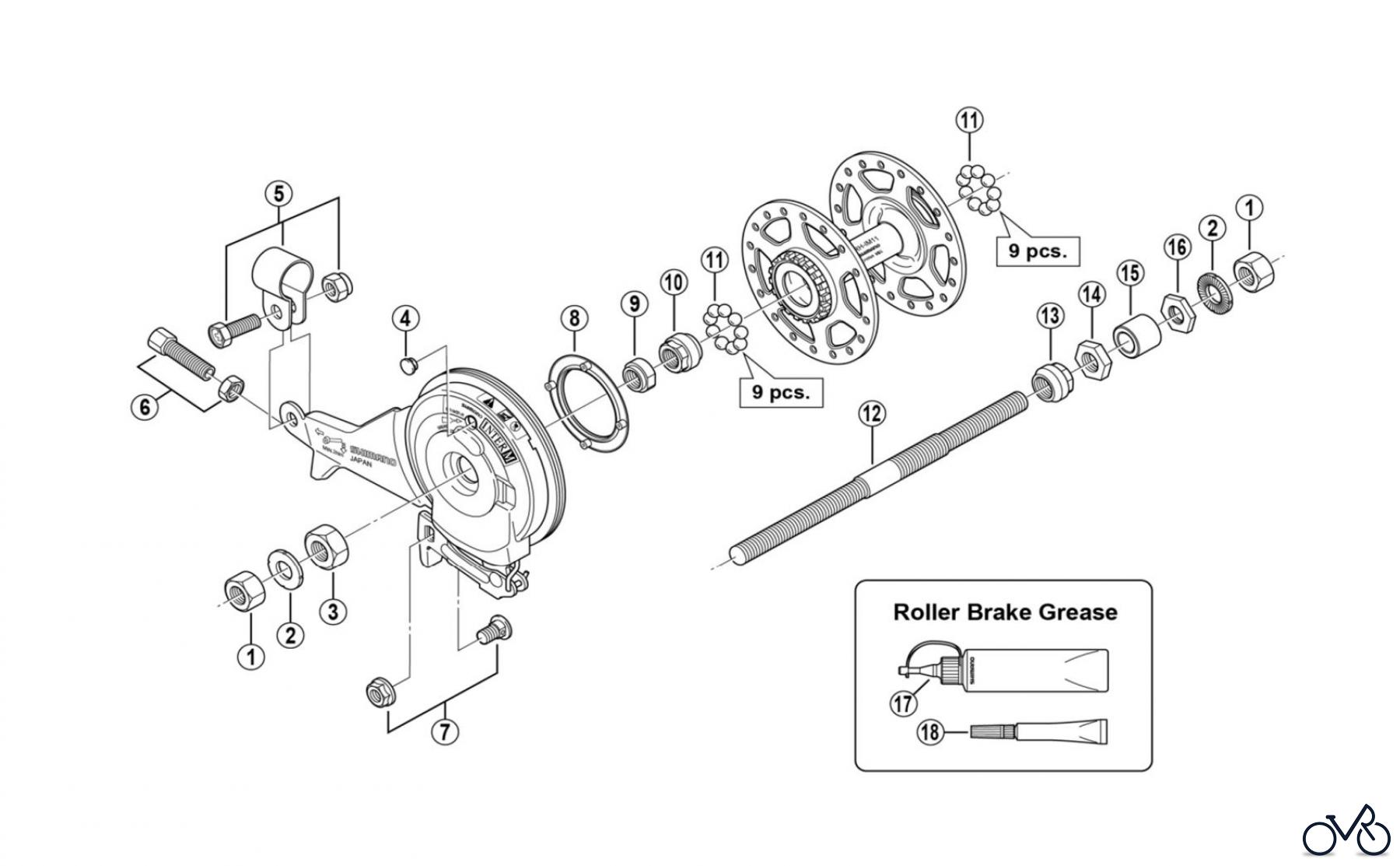

Vous trouverez ici le dessin des pièces détachées pour Shimano RH Rollerbrake Hub - Rollenbremse/Nabe RH-IM11. Sélectionnez la pièce détachée pour vélo désirée dans la liste des pièces détachées pour votre Shimano vélo et commandez simplement en ligne. Nous avons toujours beaucoup de pièces détachées Shimano en stock pour vous.

Pos.	Numéro d'article	Description
1	Y-20003080	Hub Nut (B.C.3/8" x 9 mm) B Y20003080
2	Y-22006050	Washer (2 mm) A Y22006050
3	Y-75V13000	Brake Unit Fixing Nut (B.C.3/8" x 8.2 mm) A Y75V13000
4	Y-75F11000	Grease Hole Cap A Y75F11000
5	Y-75M98050	Brake Arm Clip Unit ( ø15 mm) A Y75M98050
5	Y-33F98090	Brake Arm Clip Unit (5/8") A Y33F98090
5	Y-75M98060	Brake Arm Clip Unit (11/16") A Y75M98060
5	Y-33F98100	Brake Arm Clip Unit (3/4") A Y33F98100
6	Y-75Y98050	Brake Cable Adjusting Bolt & Nut A Y75Y98050
7	Y-75Y98060	Inner Cable Fixing Bolt & Nut A Y75Y98060
8	Y-75T05000	Seal Ring for Brake A Y75T05000
9	Y-31Z06030	Lock Nut for Left Hand Cone (B.C.3/8" x 7.1 mm) A Y31Z06030
10	Y-31Z05000	Left Hand Cone (B.C.3/8" x 13.1 mm) A Y31Z05000
11	Y-34T98030	Steel Ball (1/4") 18 pcs. A Y34T98030
12	Y-36B06000	Hub Axle (B.C.7/16", 3/8" x 180 mm) Y36B06000
12	Y-36B06010	Hub Axle (B.C.7/16", 3/8" x 185 mm) Y36B06010
12	Y-36B06020	Hub Axle (B.C.7/16", 3/8" x 192 mm) Y36B06020
12	Y-36B06030	Hub Axle (B.C.7/16", 3/8" x 200 mm) Y36B06030
13	Y-33M37000	Right Hand Cone (B.C.7/16" x 12.5 mm) Y33M37000
14	Y-22005100	Right Hand Lock Nut (B.C.3/8" x 4.5 mm) Y22005100
15	Y-34T05200	Right Hand Sleeve (14 mm) for 6-Speed A Y34T05200
15	Y-34T05300	Right Hand Sleeve (16 mm) for 7-Speed A Y34T05300
16	Y-32138000	Right Hand Lock Nut (B.C.3/8" x 3 mm) A Y32138000
17	Y-04120400	Roller Brake Grease (Net. 100g) A Y04120400
18	Y-04140020	Roller Brake Grease (Net. 10g) Y04140020
