Shimano SG-S700 ALFINE 11-Speed Internal Hub (-3092)

SG-S700 ALFINE 11-Speed Internal Hub (-3092) SG Getriebenabe /Nabenschaltung

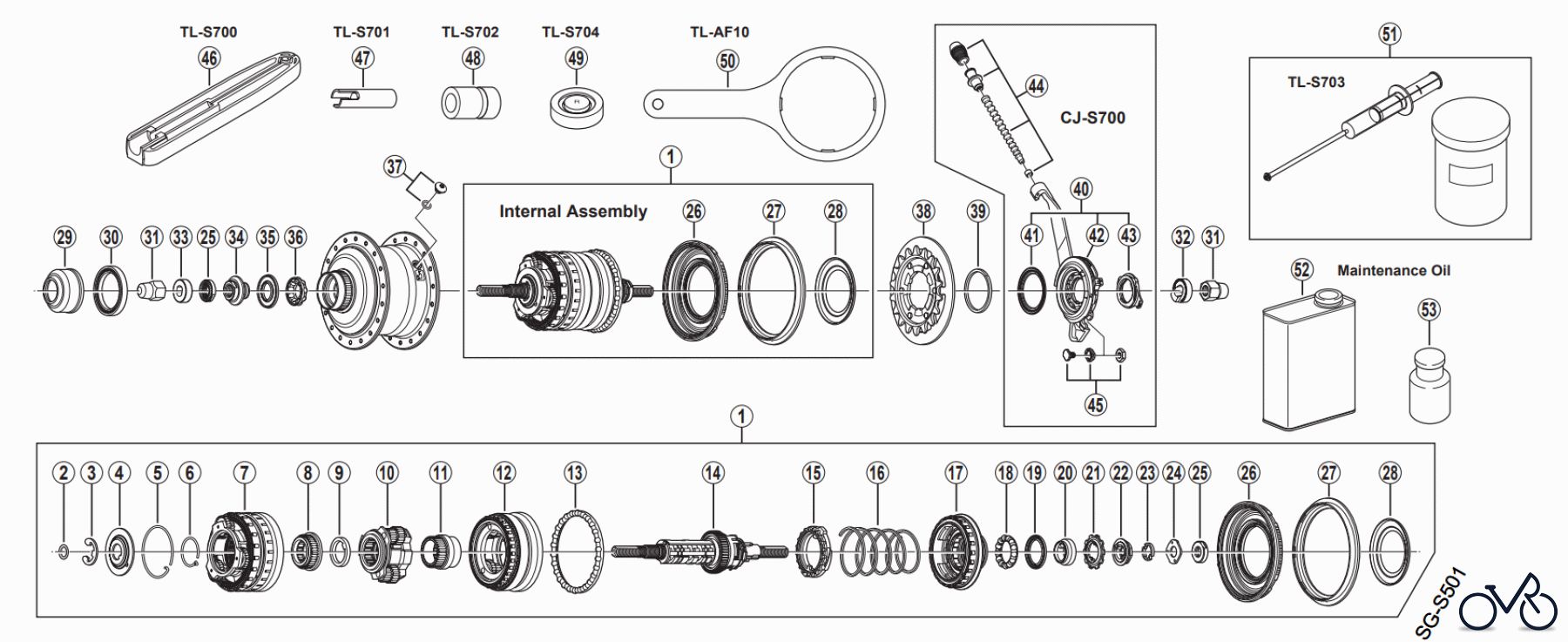

Vous trouverez ici le dessin des pièces détachées pour Shimano SG Getriebenabe /Nabenschaltung SG-S700 ALFINE 11-Speed Internal Hub (-3092). Sélectionnez la pièce détachée pour vélo désirée dans la liste des pièces détachées pour votre Shimano vélo et commandez simplement en ligne. Nous avons toujours beaucoup de pièces détachées Shimano en stock pour vous.

Pos.	Numéro d'article	Description
1	Y-37R98010	Internal Assembly (Axle Length 187 mm) Y37R98010
2	Y-37E08000	O-Ring Y37E08000
3	Y-34R79000	Stop Ring (ø12 / 1.0 mm) A Y34R79000
3	Y-34R79010	Stop Ring (ø12 / 1.3 mm) A Y34R79010
3	Y-34R79020	Stop Ring (ø12 / 1.6 mm) A Y34R79020
4	Y-37R78000	Carrier Hold Plate Y37R78000
5	Y-37R80000	Carrier 3 Slide Spring Y37R80000
6	Y-37R81000	Sun Gear 4 Slide Spring Y37R81000
7	Y-37R98020	Carrier 3 Unit Y37R98020
8	Y-37R55000	Sun Gear 4 Y37R55000
9	Y-37R56000	Sun Gear 3 Guide Ring Y37R56000
10	Y-37R98030	Carrier 2 Unit Y37R98030
11	Y-37R53000	Sun Gear 2 Y37R53000
12	Y-37R98040	Carrier 1 Unit Y37R98040
13	Y-37R98050	Ball Retainer S (3/16" x 26) Y37R98050
14	Y-37R98060	Hub Axle Unit (Axle Length 187 mm) Y37R98060
15	Y-37R98070	Clutch Unit Y37R98070
16	Y-34R21000	Return Spring A A Y34R21000
17	Y-37R98080	Driver Unit Y37R98080
18	Y-34R98070	Ball Retainer P (3/16" x 13) A Y34R98070
19	Y-37R18000	Seal Ring R Y37R18000
20	Y-37R17000	Right Hand Cone Y37R17000
21	Y-37R16000	Drive Plate Seal Y37R16000
22	Y-37R98090	Lock Washer Y37R98090
23	Y-37R15000	Lock Washer Seal Y37R15000
24	Y-37R12000	Joint Nut Stop Washer Y37R12000
25	Y-37R11000	Serated Lock Nut (4.4 mm) Y37R11000
26	Y-37R98100	Right Hand Dust Cap A w/Seal Y37R98100
27	Y-35Z20000	Chain Guard A Y35Z20000
28	Y-37R75000	Right Hand Dust Cap D Y37R75000
29	Y-37R74000	Rotor Mount Cover Y37R74000
30	Y-37R82000	Rotor Spacer Y37R82000
31	Y-72A01000	Cap Nut (3/8") B Y72A01000
32	Y-34R85010	Non-turn Washer 8R (Dark Blue) A Y34R85010
33	Y-34R85000	Non-turn Washer 8L (Dark Green) A Y34R85000
34	Y-37R98110	Left Hand Cone w/Dust Cap Y37R98110
35	Y-37R73000	Seal Ring L Y37R73000
36	Y-36U98030	Ball Retainer (7/32" x 9) A Y36U98030
37	Y-37R98120	Oil Port Bolt (Silver) & O-Ring Y37R98120
37	Y-37R98130	Oil Port Bolt (Black) & O-Ring Y37R98130
38	Y-1ZN98010	Sprocket Wheel 18T w/Guard Plate (CS-S500) A Y1ZN98010
38	Y-1ZN98020	Sprocket Wheel 20T w/Guard Plate (CS-S500) A Y1ZN98020
39	Y-32120100	Snap Ring C A Y32120100
40	Y-72A98010	CJ-S700 Cassette Joint Unit Y72A98010
41	Y-74Y18000	Driver Cap A Y74Y18000
42	Y-72A98020	CJ-S700 Cassette Joint Y72A98020
43	Y-33Z98020	Cassette Joint Fixing Ring A Y33Z98020
44	Y-6TV98060	Outer Receiver Unit Y6TV98060
45	Y-6TV98070	Inner Cable Fixing Bolt Unit Y6TV98070
46	Y-13098024	TL-S700 Inner Cable Fixing Bolt Setting Tool Y13098024
47	Y-13098021	TL-S701 Right Hand Cone Removal Tool Y13098021
48	Y-13098022	TL-S702 Right Hand Cone Installation Tool Y13098022
49	Y-70819000	TL-S704 Seal Set Tool Y70819000
50	Y-32010000	TL-AF10 Right Hand Dust Cap A Installation Tool A Y32010000
51	Y-13098023	TL-S703 Oil Kit Y13098023
52	Y-13098480	SG-S700 Oil (1 L) Y13098480
53	Y-13098481	SG-S700 Oil (50 ml) Y13098481
-	Y-37R07000	Right Hand Hub Cup Y37R07000
