Shimano SG-C6060-8C NEXUS 8-Speed Internal Hub w/Coaster Brake

SG-C6060-8C NEXUS 8-Speed Internal Hub w/Coaster Brake SG Getriebenabe /Nabenschaltung

Shimano SG Getriebenabe /Nabenschaltung SG-C6060-8C NEXUS 8-Speed Internal Hub w/Coaster Brake

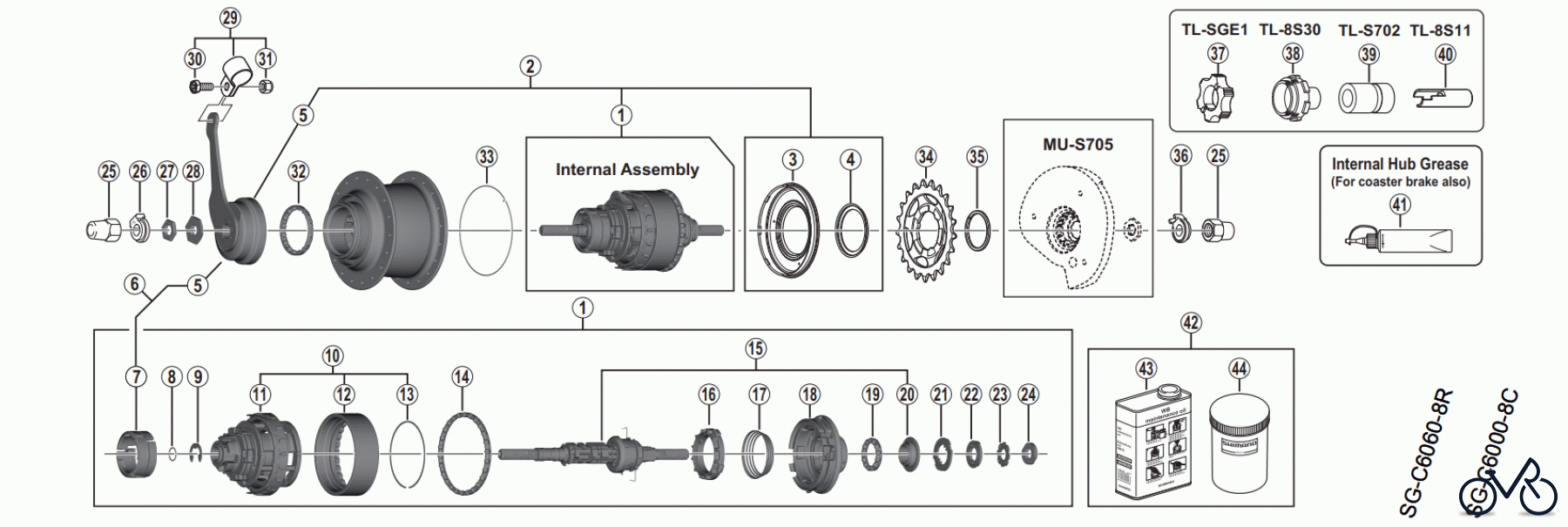

Vous trouverez ici le dessin des pièces détachées pour Shimano SG Getriebenabe /Nabenschaltung SG-C6060-8C NEXUS 8-Speed Internal Hub w/Coaster Brake. Sélectionnez la pièce détachée pour vélo désirée dans la liste des pièces détachées pour votre Shimano vélo et commandez simplement en ligne. Nous avons toujours beaucoup de pièces détachées Shimano en stock pour vous.

Pos.Numéro d'articleDescription
1 Y-31N98010 Internal Assembly (Axle Length 187 mm) Y31N98010
2 Y-31N98020 Internal Assembly (Axle Length 187 mm), Brake Arm Unit, Right Hand Dust Cap A & B Y31N98020
3 Shimano Right Hand Dust Cap A w/Seal (B spec.) Y-34R98110 Right Hand Dust Cap A w/Seal (B spec.) Y34R98110
4 Shimano Right Hand Dust Cap B (B spec.) Y-34R0E000 Right Hand Dust Cap B (B spec.) Y34R0E000
5 Shimano Brake Arm Unit (3 Serration) Y-31N98050 Brake Arm Unit (3 Serration) Y31N98050
6 Y-31N98060 Brake Shoe Unit & Brake Arm Unit Y31N98060
7 Shimano Brake Shoe Unit (3 pcs.) Y-37G98020 Brake Shoe Unit (3 pcs.) Y37G98020
8 Shimano O-Ring Y-37E08000 O-Ring Y37E08000
9 Y-33Y19000 Stop Ring (? 9.6 mm) Y33Y19000
10 Y-37G98030 Ring Gear Unit Y37G98030
11 Y-31N98070 Carrier Unit Y31N98070
12 Y-35P11010 Ring Gear 1 Y35P11010
13 Y-34R80000 Ring Gear 1 Stop Ring Y34R80000
14 Y-34R98030 Ball Retainer O (3/16" x 26) Y34R98030
15 Y-31N98080 Hub Axle Unit (Axle Length 187 mm) & Right Hand Cone w/Seal Y31N98080
16 Y-35P98060 Clutch Unit Y35P98060
17 Shimano Return Spring A Y-34R21000 Return Spring A Y34R21000
18 Y-31N98090 Driver Unit B Y31N98090
19 Shimano Ball Retainer P (3/16" x 13) Y-34R98070 Ball Retainer P (3/16" x 13) Y34R98070
20 Y-31N98100 Right Hand Cone w/Seal Y31N98100
21 Y-37S07000 Driver Plate Y37S07000
22 Y-31M98030 Lock Washer Y31M98030
23 Y-38F17000 Right Hand Lock Nut Washer Y38F17000
24 Shimano Right Hand Lock Nut (3.7 mm) Y-38F16000 Right Hand Lock Nut (3.7 mm) Y38F16000
25 Shimano Cap Nut (3/8") Y-31414010 Cap Nut (3/8") Y31414010
26 Shimano Non-turn Washer 5L (Brown) Y-33M39510 Non-turn Washer 5L (Brown) Y33M39510
26 Y-33M39610 Non-turn Washer 6L (White) Y33M39610
26 Shimano Non-turn Washer 7L (Gray) Y-33M39710 Non-turn Washer 7L (Gray) Y33M39710
27 Shimano Left Hand Lock Nut (3 mm) Y-35P28000 Left Hand Lock Nut (3 mm) Y35P28000
28 Y-35P22000 Stop Nut Y35P22000
29 Y-33F98090 Brake Arm Clip Unit (5/8") Y33F98090
29 Y-33F98100 Brake Arm Clip Unit (3/4") Y33F98100
30 Y-75M06000 Clip Screw (M6 x 16) Y75M06000
31 Y-31727200 Clip Nut Y31727200
32 Y-33098110 Ball Retainer B (3/16" x 16) Y33098110
33 Y-35J11100 Hub Shell Slide Spring Y35J11100
34 Shimano Sprocket Wheel 16T (Silver) Y-32203220 Sprocket Wheel 16T (Silver) Y32203220
34 Shimano Sprocket Wheel 18T (Silver) Y-32203420 Sprocket Wheel 18T (Silver) Y32203420
34 Shimano Sprocket Wheel 19T (Silver) Y-32203520 Sprocket Wheel 19T (Silver) Y32203520
34 Shimano Sprocket Wheel 20T (Silver) Y-32203620 Sprocket Wheel 20T (Silver) Y32203620
34 Shimano Sprocket Wheel 21T (Silver) Y-33060000 Sprocket Wheel 21T (Silver) Y33060000
34 Shimano Sprocket Wheel 22T (Silver) Y-33060100 Sprocket Wheel 22T (Silver) Y33060100
34 Shimano Sprocket Wheel 23T (Silver) Y-33060200 Sprocket Wheel 23T (Silver) Y33060200
35 Shimano Snap Ring C Y-32120100 Snap Ring C Y32120100
36 Shimano Non-turn Washer 5R (Yellow) Y-33Z20500 Non-turn Washer 5R (Yellow) Y33Z20500
36 Shimano Non-turn Washer 6R (Silver) Y-33M39600 Non-turn Washer 6R (Silver) Y33M39600
36 Shimano Non-turn Washer 7R (Black) Y-33M39700 Non-turn Washer 7R (Black) Y33M39700
37 Shimano TL-SGE1 1st Gear Set Tool Y-20W10000 TL-SGE1 1st Gear Set Tool Y20W10000
38 Shimano TL-8S30 Carrier Unit Tool Y-70800300 TL-8S30 Carrier Unit Tool Y70800300
39 Y-13098022 TL-S702 Right Hand Cone Installation Tool Y13098022
40 Shimano TL-8S11 Right Hand Cone Removal Tool Y-70800600 TL-8S11 Right Hand Cone Removal Tool Y70800600
41 Shimano Internal Hub Grease (Net. 100g) Y-04120800 Internal Hub Grease (Net. 100g) Y04120800
42 Y-00298010 WB maintenance oil set Y00298010
43 Y-00201000 WB maintenance oil (1L) Y00201000
44 Shimano Bottle Y-00201100 Bottle Y00201100
-- Y-34R0D000 Right Hand Hub Cup Y34R0D000
