Shimano SG-C6010-8R, SG-C6010-8V NEXUS 8-Speed Internal Hub

SG-C6010-8R, SG-C6010-8V NEXUS 8-Speed Internal Hub SG Getriebenabe /Nabenschaltung

Shimano SG Getriebenabe /Nabenschaltung SG-C6010-8R, SG-C6010-8V NEXUS 8-Speed Internal Hub

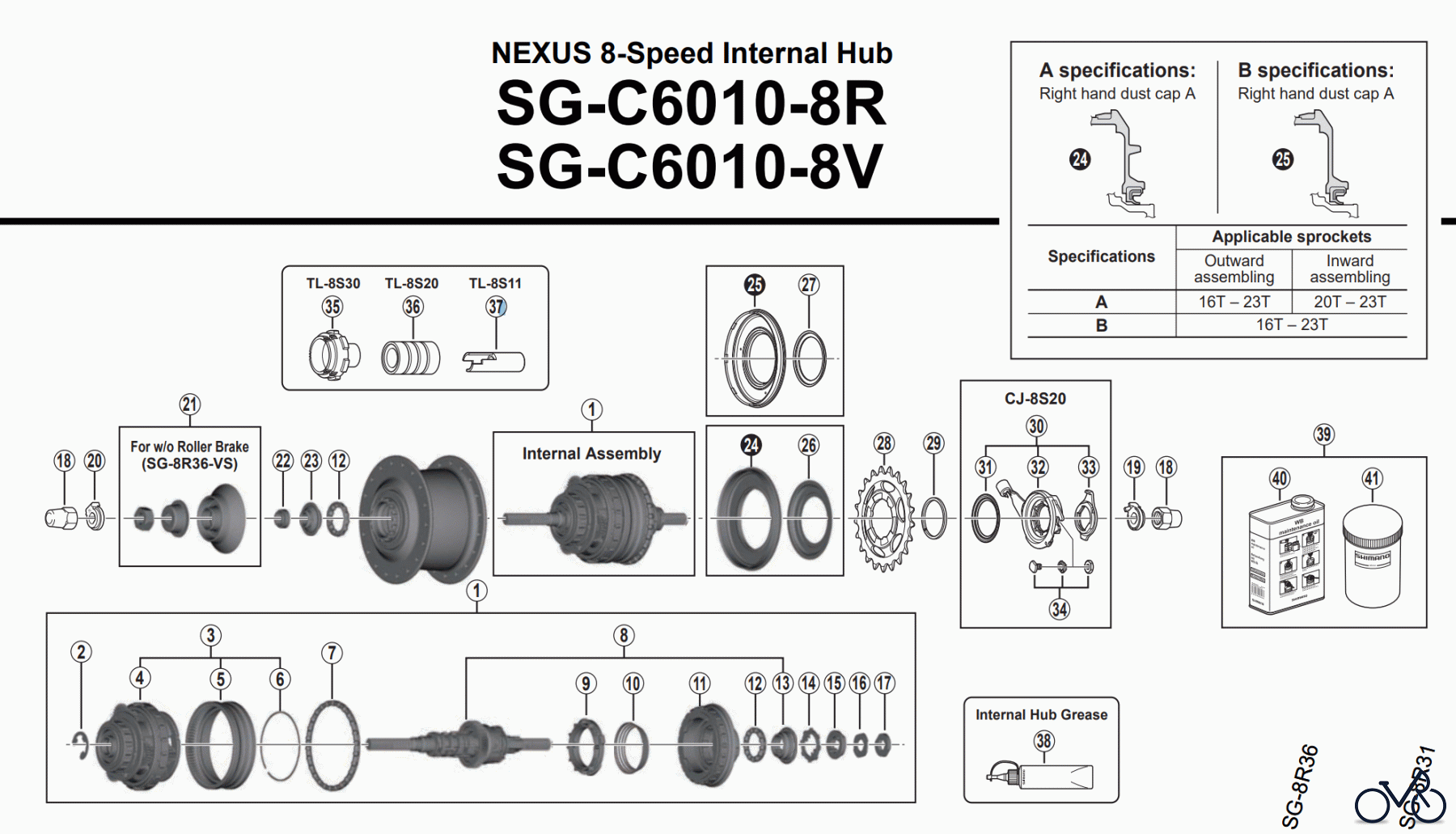

Vous trouverez ici le dessin des pièces détachées pour Shimano SG Getriebenabe /Nabenschaltung SG-C6010-8R, SG-C6010-8V NEXUS 8-Speed Internal Hub. Sélectionnez la pièce détachée pour vélo désirée dans la liste des pièces détachées pour votre Shimano vélo et commandez simplement en ligne. Nous avons toujours beaucoup de pièces détachées Shimano en stock pour vous.

Fréquemment requis Shimano SG-C6010-8R, SG-C6010-8V NEXUS 8-Speed Internal Hub

Ball Retainer P (3/16

Ball Retainer P (3/16" x 13)

Numéro d'article: Y-34R98070
Recherche pour: Y-34R98070
Fabricant: Fahrrad
Shimano Pièce de rechange SG-C6010-8R, SG-C6010-8V NEXUS 8-Speed Internal Hub
4.95 €
Y compris la TVA dans UE, + frais d'envoi.
Pos.Numéro d'articleDescription
1 Y-37L98010 Internal Assembly (Axle Length 184 mm) Y37L98010
2 Shimano Stop Ring (?12 / 1.0 mm) Y-34R79000 Stop Ring (?12 / 1.0 mm) Y34R79000
2 Y-34R79010 Stop Ring (?12 / 1.3 mm) Y34R79010
2 Y-34R79020 Stop Ring (?12 / 1.6 mm) Y34R79020
3 Y-36W98020 Ring Gear Unit Y36W98020
4 Y-36W98030 Carrier Unit Y36W98030
5 Y-36W07000 Ring Gear 1 Y36W07000
6 Y-34R80000 Ring Gear 1 Stop Ring Y34R80000
7 Y-34R98030 Ball Retainer O (3/16" x 26) Y34R98030
8 Y-37L98030 Hub Axle Unit (Axle Length 184 mm) & Right Hand Cone w/Seal Y37L98030
9 Shimano Clutch Unit Y-34R98050 Clutch Unit Y34R98050
10 Shimano Return Spring A Y-34R21000 Return Spring A Y34R21000
11 Y-37L98020 Driver Unit Y37L98020
12 Shimano Ball Retainer P (3/16" x 13) Y-34R98070 Ball Retainer P (3/16" x 13) Y34R98070
13 Shimano Right Hand Cone w/Seal Y-37J98080 Right Hand Cone w/Seal Y37J98080
14 Shimano Driver Plate Y-34R12000 Driver Plate Y34R12000
15 Shimano Lock Washer Y-34R98090 Lock Washer Y34R98090
16 Shimano Stop Washer Y-34R09000 Stop Washer Y34R09000
17 Shimano Right Hand Lock Nut (3.4 mm) Y-33Z07020 Right Hand Lock Nut (3.4 mm) Y33Z07020
18 Shimano Cap Nut (3/8") Y-31414010 Cap Nut (3/8") Y31414010
19 Shimano Non-turn Washer 5R (Yellow) Y-33Z20500 Non-turn Washer 5R (Yellow) Y33Z20500
19 Shimano Non-turn Washer 6R (Silver) Y-33M39600 Non-turn Washer 6R (Silver) Y33M39600
19 Shimano Non-turn Washer 7R (Black) Y-33M39700 Non-turn Washer 7R (Black) Y33M39700
19 Shimano Non-turn Washer 8R (Dark Blue) Y-34R85010 Non-turn Washer 8R (Dark Blue) Y34R85010
20 Shimano Non-turn Washer 5L (Brown) Y-33M39510 Non-turn Washer 5L (Brown) Y33M39510
20 Y-33M39610 Non-turn Washer 6L (White) Y33M39610
20 Shimano Non-turn Washer 7L (Gray) Y-33M39710 Non-turn Washer 7L (Gray) Y33M39710
20 Shimano Non-turn Washer 8L (Dark Green) Y-34R85000 Non-turn Washer 8L (Dark Green) Y34R85000
21 Shimano Left Hand Dust Cap Unit Y-34R98100 Left Hand Dust Cap Unit Y34R98100
22 Shimano Lock Nut for Left Hand Cone Y-31Z06030 Lock Nut for Left Hand Cone Y31Z06030
23 Shimano Left Hand Cone w/Dust Cap Y-35J90000 Left Hand Cone w/Dust Cap Y35J90000
24 Shimano Right Hand Dust Cap A w/Seal (A spec.) Y-37G98080 Right Hand Dust Cap A w/Seal (A spec.) Y37G98080
25 Shimano Right Hand Dust Cap A w/Seal (B spec.) Y-34R98110 Right Hand Dust Cap A w/Seal (B spec.) Y34R98110
26 Shimano Right Hand Dust Cap C (A spec.) Y-36R07000 Right Hand Dust Cap C (A spec.) Y36R07000
17 Shimano Right Hand Dust Cap B (B spec.) Y-34R0E000 Right Hand Dust Cap B (B spec.) Y34R0E000
28 Shimano Sprocket Wheel 16T (Silver) Y-32203220 Sprocket Wheel 16T (Silver) Y32203220
28 Shimano Sprocket Wheel 18T (Silver) Y-32203420 Sprocket Wheel 18T (Silver) Y32203420
28 Shimano Sprocket Wheel 19T (Silver) Y-32203520 Sprocket Wheel 19T (Silver) Y32203520
28 Shimano Sprocket Wheel 20T (Silver) Y-32203620 Sprocket Wheel 20T (Silver) Y32203620
28 Shimano Sprocket Wheel 21T (Silver) Y-33060000 Sprocket Wheel 21T (Silver) Y33060000
28 Shimano Sprocket Wheel 22T (Silver) Y-33060100 Sprocket Wheel 22T (Silver) Y33060100
28 Shimano Sprocket Wheel 23T (Silver) Y-33060200 Sprocket Wheel 23T (Silver) Y33060200
29 Shimano Snap Ring C Y-32120100 Snap Ring C Y32120100
30 Shimano CJ-8S20 Cassette Joint Unit Y-74Y98120 CJ-8S20 Cassette Joint Unit Y74Y98120
31 Shimano Driver Cap Y-74Y18000 Driver Cap Y74Y18000
32 Shimano CJ-8S20 Cassette Joint Y-74Y98130 CJ-8S20 Cassette Joint Y74Y98130
33 Shimano Cassette Joint Fixing Ring Y-33Z98020 Cassette Joint Fixing Ring Y33Z98020
34 Shimano Inner Cable Fixing Bolt Unit Y-74Y98030 Inner Cable Fixing Bolt Unit Y74Y98030
35 Shimano TL-8S30 Carrier Unit Tool Y-70800300 TL-8S30 Carrier Unit Tool Y70800300
36 Shimano TL-8S20 Right Hand Cone Installation Tool Y-70800200 TL-8S20 Right Hand Cone Installation Tool Y70800200
37 Shimano TL-8S11 Right Hand Cone Removal Tool Y-70800600 TL-8S11 Right Hand Cone Removal Tool Y70800600
38 Shimano Internal Hub Grease (Net. 100g) Y-04120800 Internal Hub Grease (Net. 100g) Y04120800
39 Y-00298010 WB maintenance oil set Y00298010
40 Y-00201000 WB maintenance oil (1L) Y00201000
41 Shimano Bottle Y-00201100 Bottle Y00201100
-- Y-34R0D000 Right Hand Hub Cup Y34R0D000
