Shimano SG-8R45 CYBER NEXUS 8-SPEED HUB w/Hi-Power Roller Brake

SG-8R45 CYBER NEXUS 8-SPEED HUB w/Hi-Power Roller Brake SG Getriebenabe /Nabenschaltung

BR-IM70-R

Shimano SG Getriebenabe /Nabenschaltung SG-8R45 CYBER NEXUS 8-SPEED HUB w/Hi-Power Roller Brake

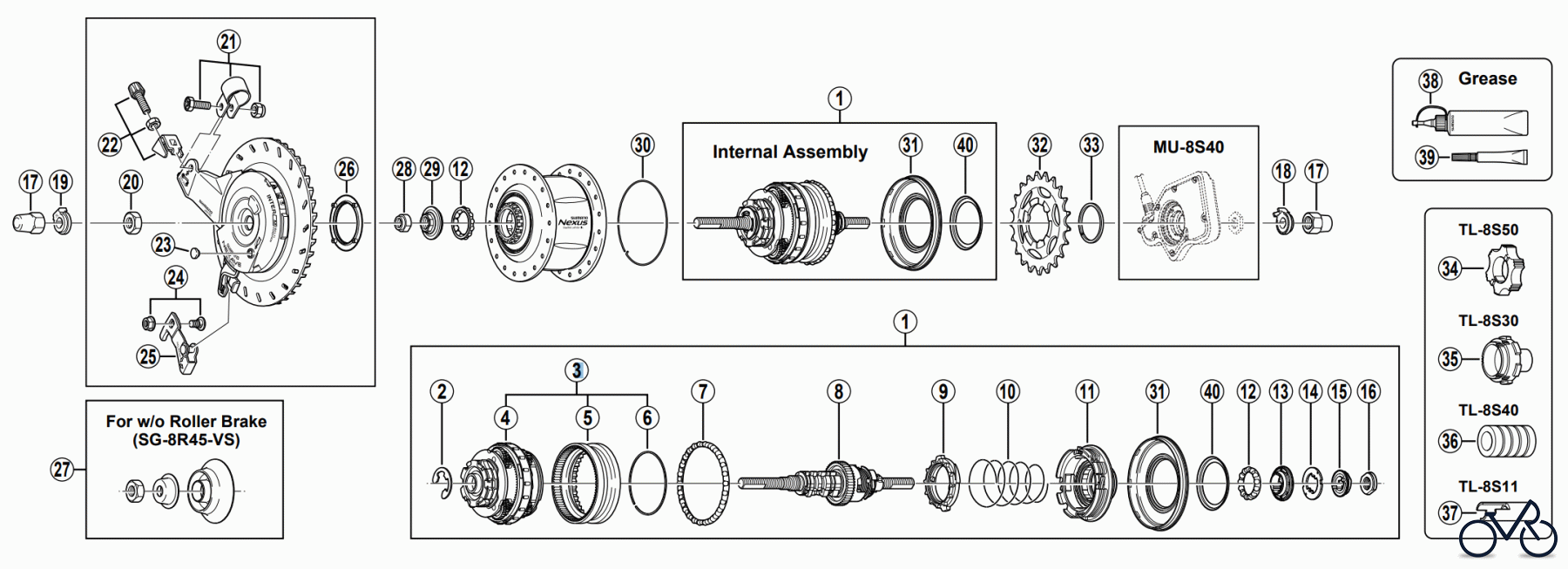

Vous trouverez ici le dessin des pièces détachées pour Shimano SG Getriebenabe /Nabenschaltung SG-8R45 CYBER NEXUS 8-SPEED HUB w/Hi-Power Roller Brake. Sélectionnez la pièce détachée pour vélo désirée dans la liste des pièces détachées pour votre Shimano vélo et commandez simplement en ligne. Nous avons toujours beaucoup de pièces détachées Shimano en stock pour vous.

Pos.	Numéro d'article	Description
1	Y-35M98030	Internal Assembly (Axle Length 184.9 mm) Y35M98030
2	Y-34R79000	Stop Ring ( 12 / 1.0 mm) Y34R79000
2	Y-34R79010	Stop Ring ( 12 / 1.3 mm) Y34R79010
2	Y-34R79020	Stop Ring ( 12 / 1.6 mm) Y34R79020
3	Y-35J98050	Ring Gear Unit Y35J98050
4	Y-35J98020	Carrier Unit Y35J98020
5	Y-35J07000	Ring Gear 1 Y35J07000
6	Y-34R80000	Ring Gear 1 Stop Ring Y34R80000
7	Y-34R98030	Ball Retainer O (3/16" x 26) Y34R98030
8	Y-35M98020	Hub Axle Unit (Axle Length 184.9 mm) Y35M98020
9	Y-34R98050	Clutch Unit Y34R98050
10	Y-34R21000	Return Spring A Y34R21000
11	Y-35J98040	Driver Unit Y35J98040
12	Y-34R98070	Ball Retainer P (3/16" x 13) Y34R98070
13	Y-35R98060	Right Hand Cone w/Seal Y35R98060
14	Y-35M05000	Driver Plate Y35M05000
15	Y-35R98070	Lock Washer Y35R98070
16	Y-35M03000	Right Hand Lock Nut A (4.7 mm) Y35M03000
17	Y-31414010	Cap Nut (3/8") Y31414010
18	Y-33Z20500	Non-turn Washer 5R (Yellow) Y33Z20500
18	Y-33M39600	Non-turn Washer 6R (Silver) Y33M39600
18	Y-33M39700	Non-turn Washer 7R (Black) Y33M39700
18	Y-34R85010	Non-turn Washer 8R (Dark Blue) Y34R85010
19	Y-33M39510	Non-turn Washer 5L (Brown) Y33M39510
19	Y-33M39610	Non-turn Washer 6L (White) Y33M39610
19	Y-33M39710	Non-turn Washer 7L (Gray) Y33M39710
19	Y-34R85000	Non-turn Washer 8L (Dark Green) Y34R85000
20	Y-75V13041	Brake Unit Fixing Nut (7.2 mm) Y75V13041
21	Y-75M98050	Brake Arm Clip Unit ( 15 mm) Y75M98050
21	Y-33F98090	Brake Arm Clip Unit (5/8") Y33F98090
21	Y-75M98060	Brake Arm Clip Unit (11/16") Y75M98060
21	Y-33F98100	Brake Arm Clip Unit (3/4") Y33F98100
22	Y-75E98010	Brake Cable Adjusting Bolt Unit Y75E98010
23	Y-75F11000	Grease Hole Cap Y75F11000
24	Y-75F98020	Inner Cable Fixing Bolt & Nut Y75F98020
25	Y-75E98020	Link Unit Y75E98020
26	Y-75T05000	Seal Ring for Brake Y75T05000
27	Y-34R98100	Left Hand Dust Cap Unit Y34R98100
28	Y-31Z06030	Lock Nut for Left Hand Cone Y31Z06030
29	Y-35J90000	Left Hand Cone w/Dust Cap Y35J90000
30	Y-35J11100	Hub Shell Slide Spring Y35J11100
31	Y-34R98110	Right Hand Dust Cap A w/Seal Y34R98110
32	Y-32203220	Sprocket Wheel 16T (Silver) Y32203220
32	Y-32203420	Sprocket Wheel 18T (Silver) Y32203420
32	Y-32203520	Sprocket Wheel 19T (Silver) Y32203520
32	Y-32203620	Sprocket Wheel 20T (Silver) Y32203620
32	Y-33060000	Sprocket Wheel 21T (Silver) Y33060000
32	Y-33060100	Sprocket Wheel 22T (Silver) Y33060100
33	Y-32120100	Snap Ring C Y32120100
34	Y-70800500	TL-8S50 Carrier Unit Tool Y70800500
35	Y-70800300	TL-8S30 Carrier Unit Tool Y70800300
36	Y-70800400	TL-8S40 Right Hand Cone Installation Tool Y70800400
37	Y-70800600	TL-8S11 Right Hand Cone Removal Tool Y70800600
38	Y-04120800	Internal Hub Grease (Net. 100g) Y04120800
38	Y-04120400	Roller Brake Grease (Net. 100g) Y04120400
39	Y-04140020	Roller Brake Grease (Net. 10g) Y04140020
40	Y-34R0E000	Right Hand Dust Cap B Y34R0E000
