Shimano SG-8R27 NEXUS 8-SPEED HUB w/Hi-Power Roller Brake Inter-8 Hub

SG-8R27 NEXUS 8-SPEED HUB w/Hi-Power Roller Brake Inter-8 Hub SG Getriebenabe /Nabenschaltung

Shimano SG Getriebenabe /Nabenschaltung SG-8R27 NEXUS 8-SPEED HUB w/Hi-Power Roller Brake Inter-8 Hub

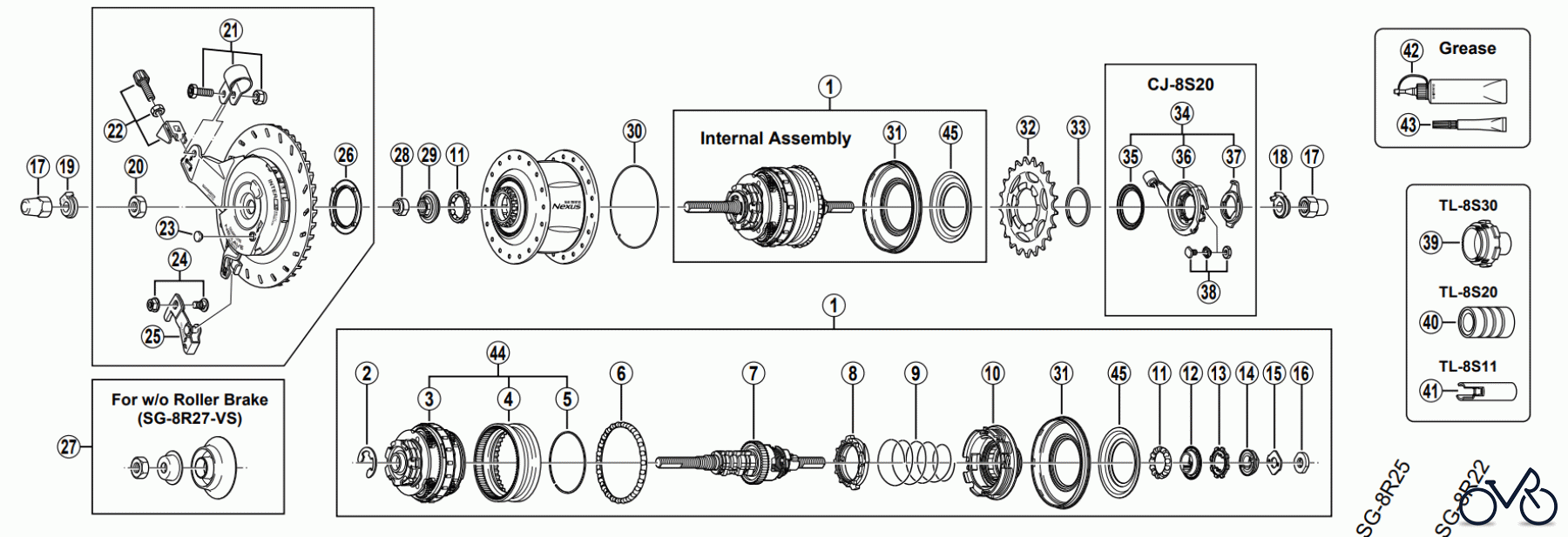

Vous trouverez ici le dessin des pièces détachées pour Shimano SG Getriebenabe /Nabenschaltung SG-8R27 NEXUS 8-SPEED HUB w/Hi-Power Roller Brake Inter-8 Hub. Sélectionnez la pièce détachée pour vélo désirée dans la liste des pièces détachées pour votre Shimano vélo et commandez simplement en ligne. Nous avons toujours beaucoup de pièces détachées Shimano en stock pour vous.

Pos.	Numéro d'article	Description
1	Y-36S98010	Internal Assembly (Axle Length 184 mm) Y36S98010
2	Y-34R79000	Stop Ring ( 12 / 1.0 mm) Y34R79000
2	Y-34R79010	Stop Ring ( 12 / 1.3 mm) Y34R79010
2	Y-34R79020	Stop Ring ( 12 / 1.6 mm) Y34R79020
3	Y-35J98020	Carrier Unit Y35J98020
4	Y-35J07000	Ring Gear 1 Y35J07000
5	Y-34R80000	Ring Gear 1 Stop Ring Y34R80000
6	Y-34R98030	Ball Retainer O (3/16" x 26) Y34R98030
7	Y-35J98030	Hub Axle Unit (Axle Length 184 mm) Y35J98030
8	Y-34R98050	Clutch Unit Y34R98050
9	Y-34R21000	Return Spring A Y34R21000
10	Y-35J98040	Driver Unit Y35J98040
11	Y-34R98070	Ball Retainer P (3/16" x 13) Y34R98070
12	Y-34R98080	Right Hand Cone w/Seal Y34R98080
13	Y-34R12000	Driver Plate Y34R12000
14	Y-34R98090	Lock Washer Y34R98090
15	Y-34R09000	Stop Washer Y34R09000
16	Y-33Z07020	Right Hand Lock Nut (3.4 mm) Y33Z07020
17	Y-31414010	Cap Nut (3/8") Y31414010
18	Y-33Z20500	Non-turn Washer 5R (Yellow) Y33Z20500
18	Y-33M39600	Non-turn Washer 6R (Silver) Y33M39600
18	Y-33M39700	Non-turn Washer 7R (Black) Y33M39700
18	Y-34R85010	Non-turn Washer 8R (Dark Blue) Y34R85010
19	Y-33M39510	Non-turn Washer 5L (Brown) Y33M39510
19	Y-33M39610	Non-turn Washer 6L (White) Y33M39610
19	Y-33M39710	Non-turn Washer 7L (Gray) Y33M39710
19	Y-34R85000	Non-turn Washer 8L (Dark Green) Y34R85000
20	Y-75V13041	Brake Unit Fixing Nut (7.2 mm) Y75V13041
21	Y-75M98050	Brake Arm Clip Unit ( 15 mm) Y75M98050
21	Y-33F98090	Brake Arm Clip Unit (5/8") Y33F98090
21	Y-75M98060	Brake Arm Clip Unit (11/16") Y75M98060
21	Y-33F98100	Brake Arm Clip Unit (3/4") Y33F98100
22	Y-75E98010	Brake Cable Adjusting Bolt Unit Y75E98010
23	Y-75F11000	Grease Hole Cap Y75F11000
24	Y-75F98020	Inner Cable Fixing Bolt & Nut Y75F98020
25	Y-75E98020	Link Unit Y75E98020
26	Y-75T05000	Seal Ring for Brake Y75T05000
27	Y-34R98100	Left Hand Dust Cap Unit Y34R98100
28	Y-31Z06030	Lock Nut for Left Hand Cone Y31Z06030
29	Y-35J90000	Left Hand Cone w/Dust Cap Y35J90000
30	Y-35J11100	Hub Shell Slide Spring Y35J11100
31	Y-36R98020	Right Hand Dust Cap A w/Seal Y36R98020
32	Y-32203220	Sprocket Wheel 16T (Silver) Y32203220
32	Y-32203420	Sprocket Wheel 18T (Silver) Y32203420
32	Y-32203520	Sprocket Wheel 19T (Silver) Y32203520
32	Y-32203620	Sprocket Wheel 20T (Silver) Y32203620
32	Y-33060000	Sprocket Wheel 21T (Silver) Y33060000
32	Y-33060100	Sprocket Wheel 22T (Silver) Y33060100
33	Y-32120100	Snap Ring C Y32120100
34	Y-74Y98120	CJ-8S20 Cassette Joint Unit Y74Y98120
35	Y-74Y18000	Driver Cap Y74Y18000
36	Y-74Y98130	CJ-8S20 Cassette Joint Y74Y98130
37	Y-33Z98020	Cassette Joint Fixing Ring Y33Z98020
38	Y-74Y98030	Inner Cable Fixing Bolt Unit Y74Y98030
39	Y-70800300	TL-8S30 Carrier Unit Tool Y70800300
40	Y-70800200	TL-8S20 Right Hand Cone Installation Tool Y70800200
41	Y-70800600	TL-8S11 Right Hand Cone Removal Tool Y70800600
42	Y-04120800	Internal Hub Grease (Net. 100g) Y04120800
42	Y-04120400	Roller Brake Grease (Net. 100g) Y04120400
43	Y-04140020	Roller Brake Grease (Net. 10g) Y04140020
44	Y-35J98050	Ring Gear Unit Y35J98050
45	Y-36R07000	Right Hand Dust Cap C Y36R07000
--	Y-34R0D000	Right Hand Hub Cup Y34R0D000
