Shimano SG-C6000-8CD NEXUS 8-Speed Internal Hub w/Coaster Brake

SG-C6000-8CD NEXUS 8-Speed Internal Hub w/Coaster Brake SG Getriebenabe /Nabenschaltung

Shimano SG Getriebenabe /Nabenschaltung SG-C6000-8CD NEXUS 8-Speed Internal Hub w/Coaster Brake

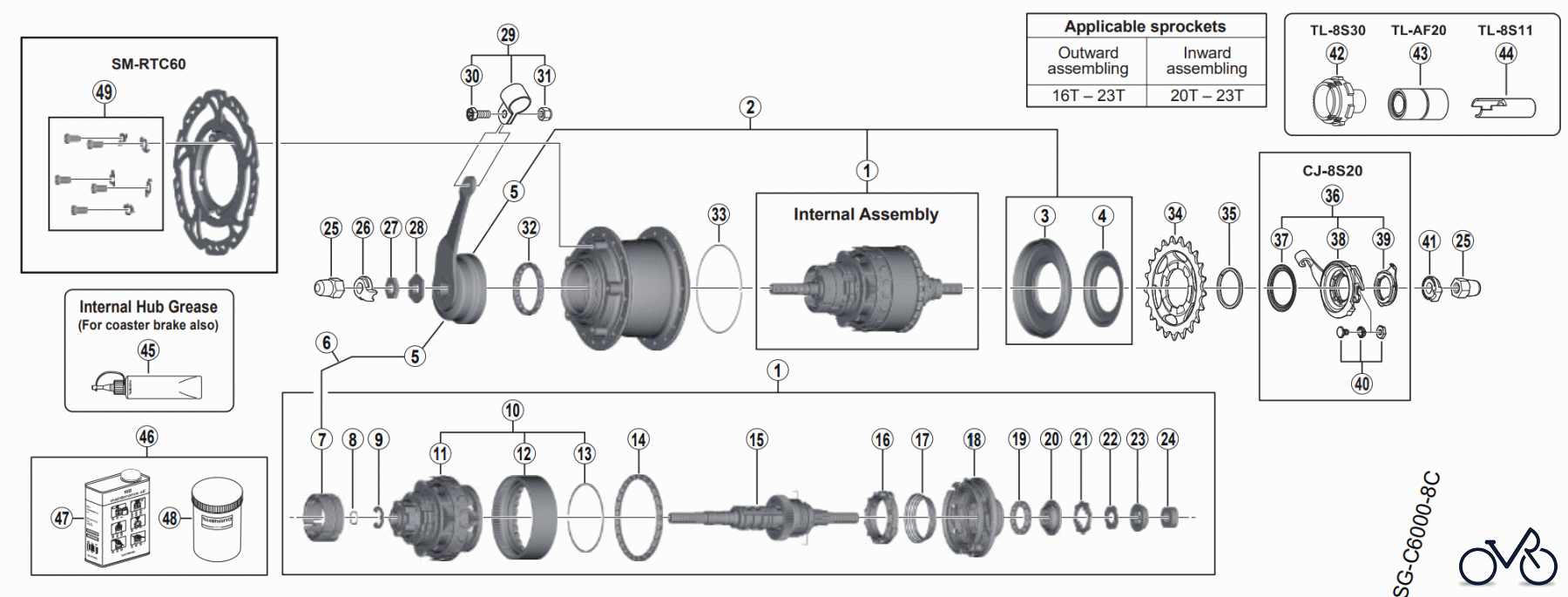

Vous trouverez ici le dessin des pièces détachées pour Shimano SG Getriebenabe /Nabenschaltung SG-C6000-8CD NEXUS 8-Speed Internal Hub w/Coaster Brake. Sélectionnez la pièce détachée pour vélo désirée dans la liste des pièces détachées pour votre Shimano vélo et commandez simplement en ligne. Nous avons toujours beaucoup de pièces détachées Shimano en stock pour vous.

Pos.Numéro d'articleDescription
1 Y-38X98010 Internal Assembly (Axle Length 187 mm) Y38X98010
2 Y-38X98020 Internal Assembly (Axle Length 187 mm), Brake Arm Unit, Right Hand Dust Cap A & C Y38X98020
3 Shimano Right Hand Dust Cap A w/Seal Y-37G98080 Right Hand Dust Cap A w/Seal Y37G98080
4 Shimano Right Hand Dust Cap C A Y-36R07000 Right Hand Dust Cap C A Y36R07000
5 Y-38X98030 Brake Arm Unit (3 Serration) Y38X98030
6 Y-38X98040 Brake Shoe Unit & Brake Arm Unit Y38X98040
7 Shimano Brake Shoe Unit (3 pcs.) Y-37G98020 Brake Shoe Unit (3 pcs.) Y37G98020
8 Shimano O-Ring Y-37E08000 O-Ring Y37E08000
9 Y-37G19000 E-Ring Y37G19000
10 Y-37G98030 Ring Gear Unit Y37G98030
11 Y-37G98040 Carrier Unit Y37G98040
12 Y-35P11010 Ring Gear 1 Y35P11010
13 Y-34R80000 Ring Gear 1 Stop Ring Y34R80000
14 Shimano Ball Retainer O (3/16" x 26) Y-38X98050 Ball Retainer O (3/16" x 26) Y38X98050
15 Y-38X98060 Hub Axle Unit (Axle Length 187 mm) Y38X98060
16 Y-35P98060 Clutch Unit Y35P98060
17 Shimano Return Spring Y-34R21000 Return Spring Y34R21000
18 Y-37G98060 Driver Unit Y37G98060
19 Shimano Ball Retainer P (3/16" x 13) Y-34R98070 Ball Retainer P (3/16" x 13) Y34R98070
20 Shimano Right Hand Cone w/Seal Y-37J98080 Right Hand Cone w/Seal Y37J98080
21 Shimano Driver Plate Y-34R12000 Driver Plate Y34R12000
22 Shimano Lock Washer Y-34R98090 Lock Washer Y34R98090
23 Shimano Stop Washer Y-34R09000 Stop Washer Y34R09000
24 Y-30803020 Right Hand Lock Nut (6 mm) Y30803020
25 Shimano Cap Nut (3/8") Y-31414010 Cap Nut (3/8") Y31414010
26 Shimano Non-turn Washer 5L (Brown) Y-33M39510 Non-turn Washer 5L (Brown) Y33M39510
26 Y-33M39610 Non-turn Washer 6L (White) Y33M39610
26 Shimano Non-turn Washer 7L (Gray) Y-33M39710 Non-turn Washer 7L (Gray) Y33M39710
27 Shimano Left Hand Lock Nut (3 mm) Y-35P28000 Left Hand Lock Nut (3 mm) Y35P28000
28 Y-35P22000 Stop Nut Y35P22000
29 Y-33F98090 Brake Arm Clip Unit (5/8") Y33F98090
29 Y-33F98100 Brake Arm Clip Unit (3/4") Y33F98100
30 Y-75M06000 Clip Screw (M6 x 16) Y75M06000
31 Y-31727200 Clip Nut Y31727200
32 Shimano Ball Retainer B (3/16" x 16) Y-38R98190 Ball Retainer B (3/16" x 16) Y38R98190
33 Y-35J11100 Hub Shell Slide Spring Y35J11100
34 Shimano Sprocket Wheel 16T (Silver) Y-32203220 Sprocket Wheel 16T (Silver) Y32203220
34 Shimano Sprocket Wheel 18T (Silver) Y-32203420 Sprocket Wheel 18T (Silver) Y32203420
34 Shimano Sprocket Wheel 19T (Silver) Y-32203520 Sprocket Wheel 19T (Silver) Y32203520
34 Shimano Sprocket Wheel 20T (Silver) Y-32203620 Sprocket Wheel 20T (Silver) Y32203620
34 Shimano Sprocket Wheel 21T (Silver) Y-33060000 Sprocket Wheel 21T (Silver) Y33060000
34 Shimano Sprocket Wheel 22T (Silver) Y-33060100 Sprocket Wheel 22T (Silver) Y33060100
34 Shimano Sprocket Wheel 23T (Silver) Y-33060200 Sprocket Wheel 23T (Silver) Y33060200
35 Shimano Snap Ring C Y-32120100 Snap Ring C Y32120100
36 Shimano CJ-8S20 Cassette Joint Unit Y-74Y98120 CJ-8S20 Cassette Joint Unit Y74Y98120
37 Shimano Driver Cap Y-74Y18000 Driver Cap Y74Y18000
38 Shimano CJ-8S20 Cassette Joint Y-74Y98130 CJ-8S20 Cassette Joint Y74Y98130
39 Shimano Cassette Joint Fixing Ring Y-33Z98020 Cassette Joint Fixing Ring Y33Z98020
40 Shimano Inner Cable Fixing Bolt Unit Y-74Y98030 Inner Cable Fixing Bolt Unit Y74Y98030
41 Shimano Non-turn Washer 5R (Yellow) Y-33Z20500 Non-turn Washer 5R (Yellow) Y33Z20500
41 Shimano Non-turn Washer 6R (Silver) Y-33M39600 Non-turn Washer 6R (Silver) Y33M39600
41 Shimano Non-turn Washer 7R (Black) Y-33M39700 Non-turn Washer 7R (Black) Y33M39700
42 Shimano TL-8S30 Carrier Unit Tool Y-70800300 TL-8S30 Carrier Unit Tool Y70800300
43 Y-70810000 TL-AF20 Right Hand Cone Installation Tool Y70810000
44 Shimano TL-8S11 Right Hand Cone Removal Tool Y-70800600 TL-8S11 Right Hand Cone Removal Tool Y70800600
45 Shimano Internal Hub Grease (Net. 100g) Y-04120800 Internal Hub Grease (Net. 100g) Y04120800
46 Y-00298010 WB maintenance oil set Y00298010
47 Y-00201000 WB maintenance oil (1L) Y00201000
48 Shimano Bottle Y-00201100 Bottle Y00201100
49 Y-8NA98010 Rotor Fixing Bolt & Lock Washer Y8NA98010
- Y34R0D000 Right Hand Hub Cup Y34R0D000
