Shimano SG-S501 ALFINE 8-Speed Internal Hub

SG-S501 ALFINE 8-Speed Internal Hub SG Getriebenabe /Nabenschaltung

Shimano SG Getriebenabe /Nabenschaltung SG-S501 ALFINE 8-Speed Internal Hub

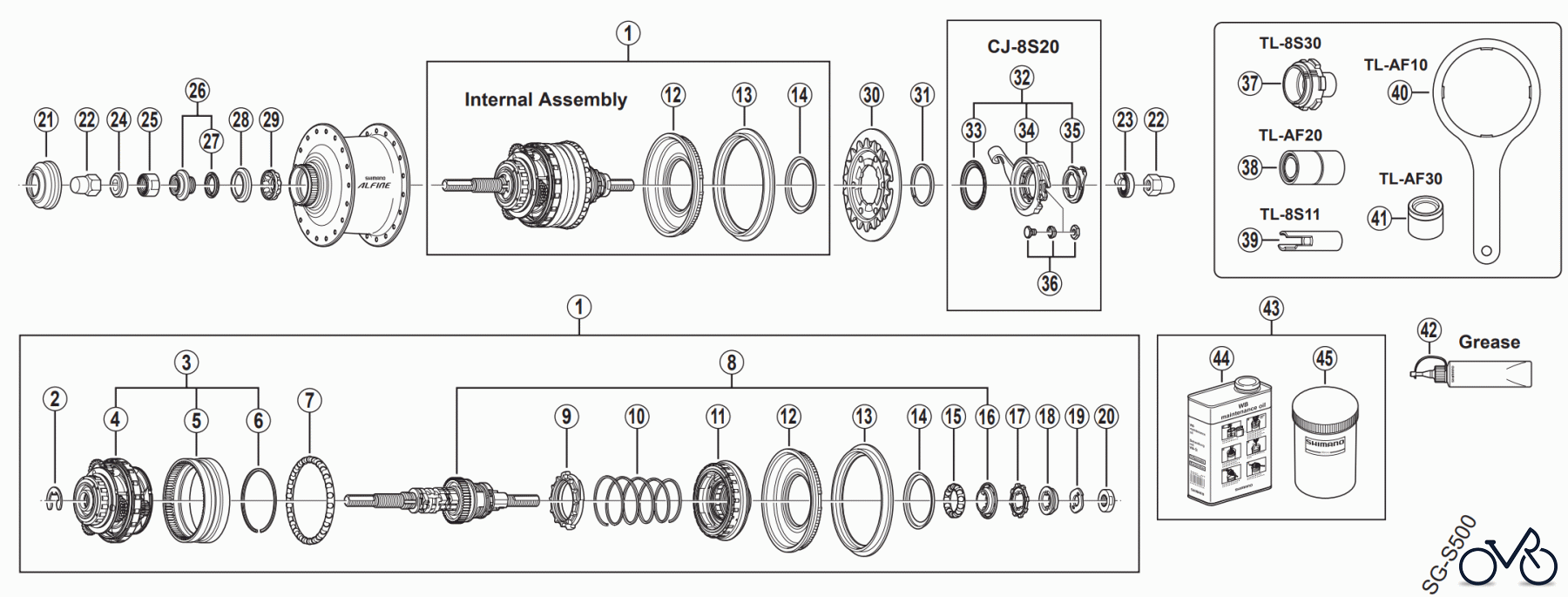

Vous trouverez ici le dessin des pièces détachées pour Shimano SG Getriebenabe /Nabenschaltung SG-S501 ALFINE 8-Speed Internal Hub. Sélectionnez la pièce détachée pour vélo désirée dans la liste des pièces détachées pour votre Shimano vélo et commandez simplement en ligne. Nous avons toujours beaucoup de pièces détachées Shimano en stock pour vous.

Pos.Numéro d'articleDescription
1 Y-37N98010Internal Assembly (Axle Length 187 mm) Y37N98010
2 Shimano Stop Ring (Ø 12 / 1.0 mm)Y-34R79000Stop Ring (Ø 12 / 1.0 mm) Y34R79000
2 Y-34R79010Stop Ring (Ø 12 / 1.3 mm) Y34R79010
2 Y-34R79020Stop Ring (Ø 12 / 1.6 mm) Y34R79020
3 Y-36W98020Ring Gear Unit Y36W98020
4 Y-36W98030Carrier Unit Y36W98030
5 Y-36W07000Ring Gear 1 Y36W07000
6 Y-34R80000Ring Gear 1 Stop Ring Y34R80000
7 Y-34R98030Ball Retainer O (3/16" x 26) Y34R98030
8 Y-37N98020Hub Axle Unit (Axle Length 187 mm) & Right Hand Cone w/Sea Y37N98020
9 Shimano Clutch UnitY-34R98050Clutch Unit Y34R98050
10 Shimano Return Spring AY-34R21000Return Spring A Y34R21000
11 Y-37L98020Driver Unit Y37L98020
12 Shimano Right Hand Dust Cap A w/SealY-35Z98050Right Hand Dust Cap A w/Seal Y35Z98050
13 Shimano Chain GuardY-35Z20000Chain Guard Y35Z20000
14 Shimano Right Hand Dust Cap BY-34R0E000Right Hand Dust Cap B Y34R0E000
15 Shimano Ball Retainer P (3/16" x 13)Y-34R98070Ball Retainer P (3/16" x 13) Y34R98070
16 Shimano Right Hand Cone w/SealY-37J98080Right Hand Cone w/Seal Y37J98080
17 Shimano Driver PlateY-34R12000Driver Plate Y34R12000
18 Shimano Lock WasherY-34R98090Lock Washer Y34R98090
19 Shimano Stop WasherY-34R09000Stop Washer Y34R09000
20 Shimano Right Hand Serated Lock Nut (5.4 mm)Y-35Z11000Right Hand Serated Lock Nut (5.4 mm) Y35Z11000
21 Y-24Z02000Rotor Mount Cover Y24Z02000
22 Shimano Cap Nut (3/8")Y-31414010Cap Nut (3/8") Y31414010
23 Shimano Non-turn Washer 8R (Dark Blue)Y-34R85010Non-turn Washer 8R (Dark Blue) Y34R85010
24 Shimano Non-turn Washer 8L (Dark GreenY-34R85000Non-turn Washer 8L (Dark Green Y34R85000
25 Shimano Left Hand Serated Lock Nut (10.7 mm)Y-35Z19000Left Hand Serated Lock Nut (10.7 mm) Y35Z19000
26 Shimano Left Hand Cone w/Dust Cap & Seal RingY-35Z98060Left Hand Cone w/Dust Cap & Seal Ring Y35Z98060
27 Shimano Seal RingY-37710000Seal Ring Y37710000
28 Shimano Left Hand Inner Dust CapY-32T08100Left Hand Inner Dust Cap Y32T08100
29 Shimano Ball Retainer (7/32" x 9)Y-36U98030Ball Retainer (7/32" x 9) Y36U98030
30 Y-1ZN98010Sprocket Wheel 18T w/Guard Plate (CS-S500) Y1ZN98010
30 Y-1ZN98020Sprocket Wheel 20T w/Guard Plate (CS-S500) Y1ZN98020
31 Shimano Snap Ring CY-32120100Snap Ring C Y32120100
32 Shimano CJ-8S20 Cassette Joint UnitY-74Y98120CJ-8S20 Cassette Joint Unit Y74Y98120
33 Shimano Driver CapY-74Y18000Driver Cap Y74Y18000
34 Shimano CJ-8S20 Cassette JointY-74Y98130CJ-8S20 Cassette Joint Y74Y98130
35 Shimano Cassette Joint Fixing RingY-33Z98020Cassette Joint Fixing Ring Y33Z98020
36 Shimano Inner Cable Fixing Bolt UnitY-74Y98030Inner Cable Fixing Bolt Unit Y74Y98030
37 Shimano TL-8S30 Carrier Unit ToolY-70800300TL-8S30 Carrier Unit Tool Y70800300
38 Y-70810000TL-AF20 Right Hand Cone Installation Tool Y70810000
39 Shimano TL-8S11 Right Hand Cone Removal ToolY-70800600TL-8S11 Right Hand Cone Removal Tool Y70800600
40 Y-32010000TL-AF10 Right Hand Dust Cap A Installation Tool Y32010000
41 Y-70811000TL-AF30 Left Hand Inner Dust Cap Installation Tool Y70811000
42 Shimano Internal Hub Grease (Net. 100g)Y-04120800Internal Hub Grease (Net. 100g) Y04120800
43 Y-00298010WB maintenance oil set Y00298010
44 Y-00201000WB maintenance oil (1L) Y00201000
45 Shimano BottleY-00201100Bottle Y00201100
- Y-35Z07010Right Hand Hub Cup Y35Z07010
