Shimano WH-M8120-TL-R12-B-29-4529B DEORE XT Rear Wheel (MTB 12-speed)

WH-M8120-TL-R12-B-29-4529B DEORE XT Rear Wheel (MTB 12-speed) WH Wheels - Laufräder

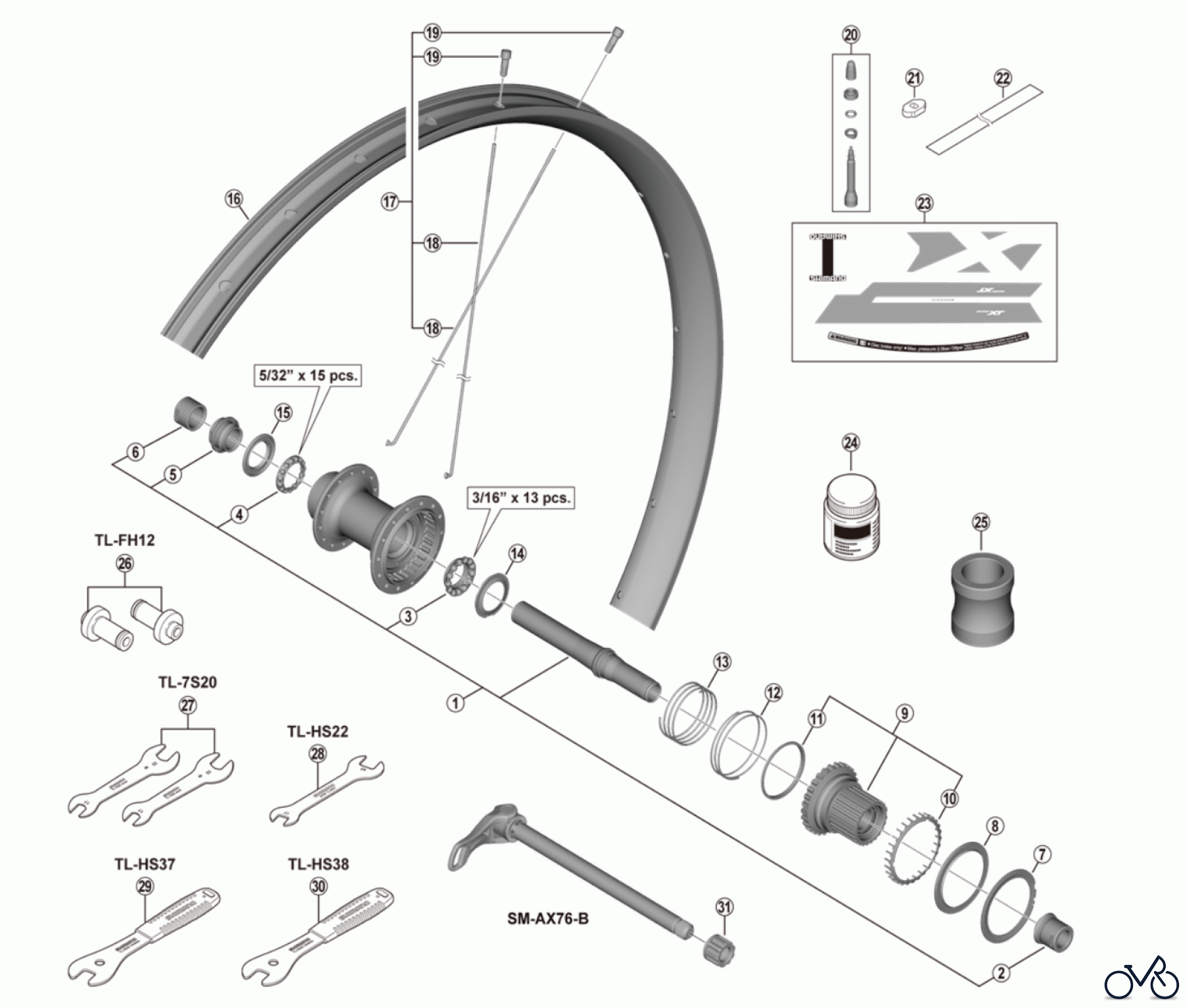

Vous trouverez ici le dessin des pièces détachées pour Shimano WH Wheels - Laufräder WH-M8120-TL-R12-B-29-4529B DEORE XT Rear Wheel (MTB 12-speed). Sélectionnez la pièce détachée pour vélo désirée dans la liste des pièces détachées pour votre Shimano vélo et commandez simplement en ligne. Nous avons toujours beaucoup de pièces détachées Shimano en stock pour vous.

Pos.	Numéro d'article	Description
1	Y-3G198010	Complete hub axle Y3G198010
2	Y-3G198020	Right hand cap unit Y3G198020
3	Y-3G198030	Right hand ball retainer (3/16" x 13) Y3G198030
4	Y-0CJ98030	Ball retainer (5/32" x 15) Y0CJ98030
5	Y-3G198040	Left hand cone with dust cover Y3G198040
6	Y-3G104000	Left hand lock nut Y3G104000
7	Y-3FL98060	Stop ring with outer dust cover Y3FL98060
8	Y-3FM26000	Outer seal ring Y3FM26000
9	Y-0HE98010	Complete freewheel body Y0HE98010
10	Y-3FM14000	Spacer Y3FM14000
11	Y-3FM11000	Slider Y3FM11000
12	Y-3FM10000	Spring Y3FM10000
13	Y-3FM12000	Coil spring Y3FM12000
14	Y-3G112000	Inner cover Y3G112000
15	Y-26D10000	Seal ring Y26D10000
16	E-WHRIMZ2F5Z	Rim {28H} EWHRIMZ2F5Z
17	E-WHSPOKEY273X	Spoke unit {spoke (287.5 mm x 14 pcs. / 290 mm x 14 pcs.) / nipple (28 pcs.)} EWHSPOKEY273X
18	Y-0HP04000	Spoke (287.5 mm) Y0HP04000
18	Y-0HP05000	Spoke (290 mm) Y0HP05000
19	Y-012Z4079	Nipple 12g-BC2 cross recess type 2 Y012Z4079
20	Y-0KL98010	Valve unit Y0KL98010
21	Y-4RJ10000	Valve tool Y4RJ10000
22	Y-0KP00010	Tubeless tape Y0KP00010
23	Y-0HP98010	Rim sticker unit Y0HP98010
24	Y-38Z98000	Seal grease for freehub 50 g Y38Z98000
25	Y-1Y100010	TL-FH16 Seal ring presser Y1Y100010
26	Y-13098011	TL-FH12 Hub setting tool for 12 mm thru-axle Y13098011
27	Y-13098900	TL-7S20 Hub spanner (17 mm x 22 mm) 2 pcs. Y13098900
28	Y-3C227000	TL-HS22 Hub spanner (17 mm x 24 mm) Y3C227000
29	Y-23098030	TL-HS37 Hub spanner 17 mm Y23098030
30	Y-23098040	TL-HS38 Hub spanner 18 mm Y23098040
31	Y-27Y02000	Fixing nut (M12) Y27Y02000
