Shimano WH-M8100-TL-R12-B-275-4524D DEORE XT Rear Wheel (MTB 12-speed)

WH-M8100-TL-R12-B-275-4524D DEORE XT Rear Wheel (MTB 12-speed) WH Wheels - Laufräder

SM-AX76-B

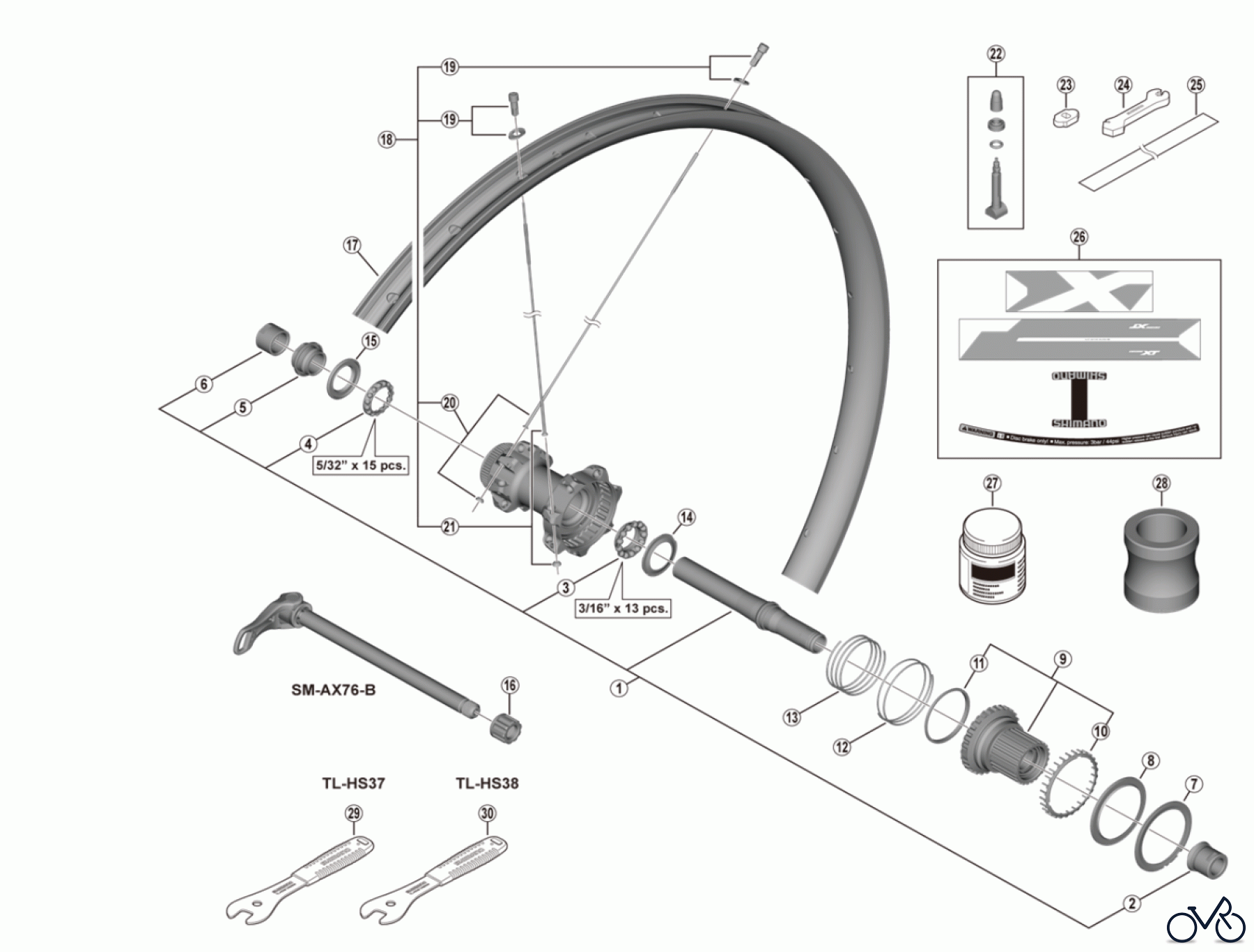

Vous trouverez ici le dessin des pièces détachées pour Shimano WH Wheels - Laufräder WH-M8100-TL-R12-B-275-4524D DEORE XT Rear Wheel (MTB 12-speed). Sélectionnez la pièce détachée pour vélo désirée dans la liste des pièces détachées pour votre Shimano vélo et commandez simplement en ligne. Nous avons toujours beaucoup de pièces détachées Shimano en stock pour vous.

Pos.	Numéro d'article	Description
1	Y-3G198010	Complete hub axle Y3G198010
2	Y-3G198020	Right hand cap unit Y3G198020
3	Y-3G198030	Right hand ball retainer (3/16" x 13) B B Y3G198030
4	Y-0CJ98030	Ball retainer (5/32" x 15) Y0CJ98030
5	Y-3G198040	Left hand cone with dust cover Y3G198040
6	Y-3G104000	Left hand lock nut Y3G104000
7	Y-3FL98060	Stop ring with outer dust cover A A Y3FL98060
8	Y-3FM26000	Outer seal ring A A Y3FM26000
9	Y-0HE98010	Complete freewheel body Y0HE98010
10	Y-3FM14000	Spacer B B Y3FM14000
11	Y-3FM11000	Slider A A Y3FM11000
12	Y-3FM10000	Spring A A Y3FM10000
13	Y-3FM12000	Coil spring A A Y3FM12000
14	Y-3G112000	Inner cover Y3G112000
15	Y-26D10000	Seal ring Y26D10000
16	Y-27Y02000	Fixing nut (M12) A A Y27Y02000
17	-	Rim {28H}
18	-	Spoke unit {spoke (281.5 mm x 14 pcs. / 277 mm x 14 pcs.) / spherical washer (28 pcs.) / nipple (28 pcs.) / rim washer (28 pcs.)}
19	Y-03X98010	Nipple and Rim Washer Y03X98010
20	Y-0HD98010	Left hand spoke (281.5 mm) with spherical washer Y0HD98010
21	Y-0HE98020	Right hand spoke (277 mm) with spherical washer Y0HE98020
22	Y-4RJ98020	Valve unit Y4RJ98020
23	Y-4RJ10000	Valve tool Y4RJ10000
24	Y-4EF28000	Nipple wrench 4.0 Y4EF28000
25	Y-48J00010	Tubeless tape Y48J00010
26	Y-0HD98020	Rim sticker unit Y0HD98020
27	Y-38Z98000	Seal grease for freehub (50 g) A A Y38Z98000
28	Y-1Y100010	TL-FH16 Seal ring presser A A Y1Y100010
29	Y-23098030	TL-HS37 Hub spanner 17 mm A A Y23098030
30	Y-23098040	TL-HS38 Hub spanner 18 mm Y23098040
