Shimano WH-MT15-A-F15-275 Front Wheel Black / White

WH-MT15-A-F15-275 Front Wheel Black / White WH Wheels - Laufräder

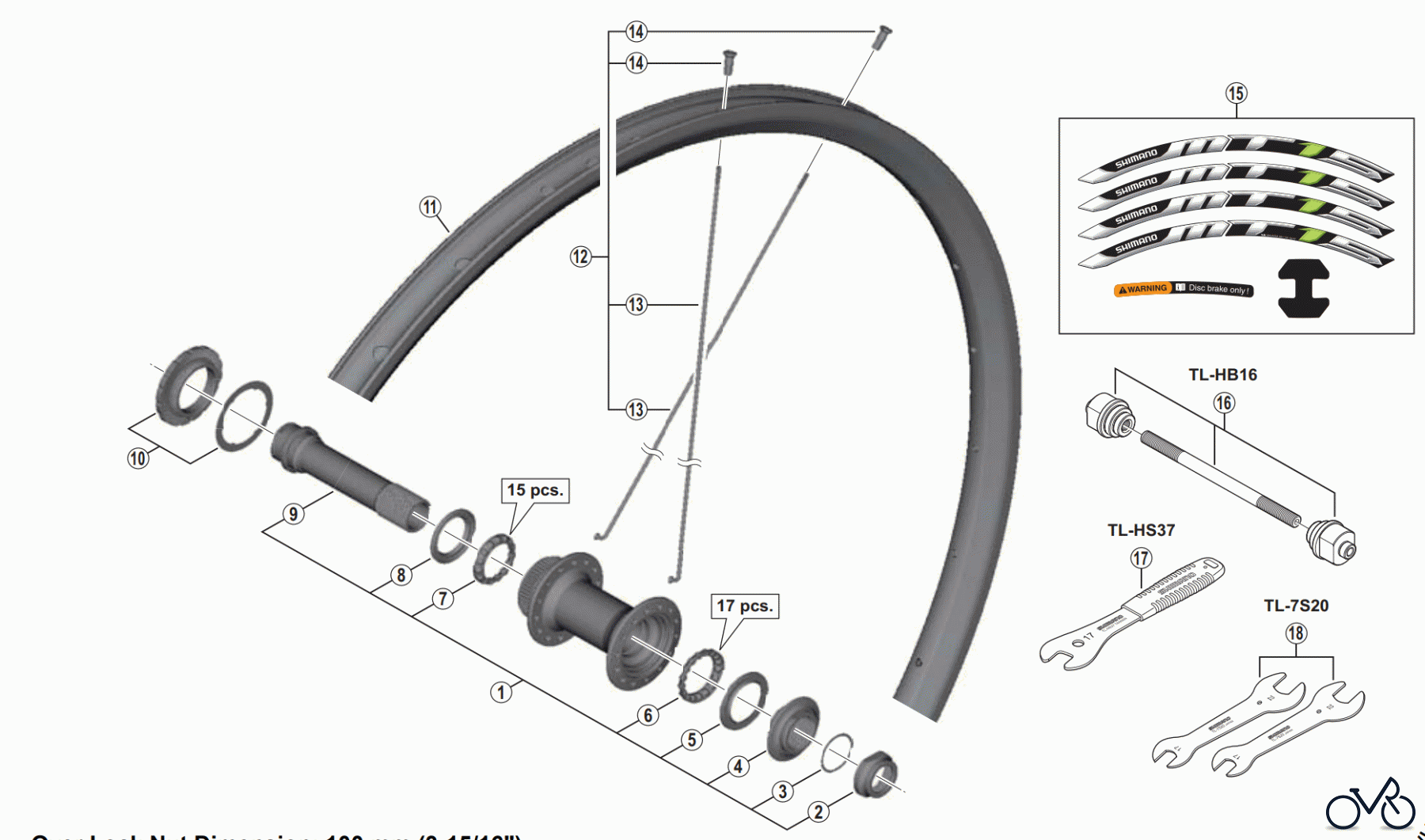

Vous trouverez ici le dessin des pièces détachées pour Shimano WH Wheels - Laufräder WH-MT15-A-F15-275 Front Wheel Black / White. Sélectionnez la pièce détachée pour vélo désirée dans la liste des pièces détachées pour votre Shimano vélo et commandez simplement en ligne. Nous avons toujours beaucoup de pièces détachées Shimano en stock pour vous.

Pos.	Numéro d'article	Description
1	Y-24698010	Complete Hub Axle Y24698010
2	Y-24612000	Right Hand Lock Nut A Y24612000
3	Y-24613000	Adjusting Washer Y24613000
4	Y-24698040	Right Hand Cone w/Dust Cap A Y24698040
5	Y-27X15000	Right Hand Seal Ring A Y27X15000
6	Y-27X98030	Right Hand Ball Retainer (5/32" x 17) A Y27X98030
7	Y-27X98040	Left Hand Ball Retainer (5/32" x 15) A Y27X98040
8	Y-27X14000	Left Hand Seal Ring A Y27X14000
9	Y-24698020	Hub Axle Unit A Y24698020
10	Y-24698030	Lock Ring & Washer A Y24698030
11	E-WHRIM2F4M	Black Rim {28H / Rim Sticker: Standard} EWHRIM2F4M
11	E-WHRIM2F4N	White Rim {28H / Rim Sticker: Standard} EWHRIM2F4N
12	E-WHSPOKE272N	Spoke Unit {Spoke (268 mm x 28 pcs.) / Nipple (28 pcs.)} EWHSPOKE272N
13	Y-48MS1000	Spoke (268 mm) Y48MS1000
14	Y-012Y4341	Nipple Y012Y4341
15	Y-48M98010	Rim Sticker Unit (Standard) for Black Rim Y48M98010
15	Y-48M98020	Rim Sticker Unit (Monotone) for Black Rim Y48M98020
15	Y-48M98030	Rim Sticker Unit (Blue) for Black Rim Y48M98030
15	Y-48M98040	Rim Sticker Unit (Orange) for Black Rim Y48M98040
15	Y-48M98050	Rim Sticker Unit (Red) for Black Rim Y48M98050
15	Y-48M98060	Rim Sticker Unit (Grey) for Black Rim Y48M98060
15	Y-48M98070	Rim Sticker Unit (Standard) for White Rim Y48M98070
15	Y-48M98080	Rim Sticker Unit (Monotone) for White Rim Y48M98080
15	Y-48M98090	Rim Sticker Unit (Blue) for White Rim Y48M98090
15	Y-48M98100	Rim Sticker Unit (Orange) for White Rim Y48M98100
15	Y-48M98110	Rim Sticker Unit (Red) for White Rim Y48M98110
15	Y-48M98120	Rim Sticker Unit (Grey) for White Rim Y48M98120
16	Y-20W98020	TL-HB16 Hub Setting Tool A Y20W98020
17	Y-23098030	TL-HS37 Hub Spanner (17 mm) A Y23098030
18	Y-13098900	TL-7S20 Hub Spanner (17 mm x 22 mm) 2 pcs. Y13098900
