Shimano SG-3R40 (-1836C) NEXUS 3-SPEED HUB w/Hi-Power Roller Brake

SG-3R40 (-1836C) NEXUS 3-SPEED HUB w/Hi-Power Roller Brake SG Getriebenabe /Nabenschaltung

Shimano SG Getriebenabe /Nabenschaltung SG-3R40 (-1836C) NEXUS 3-SPEED HUB w/Hi-Power Roller Brake

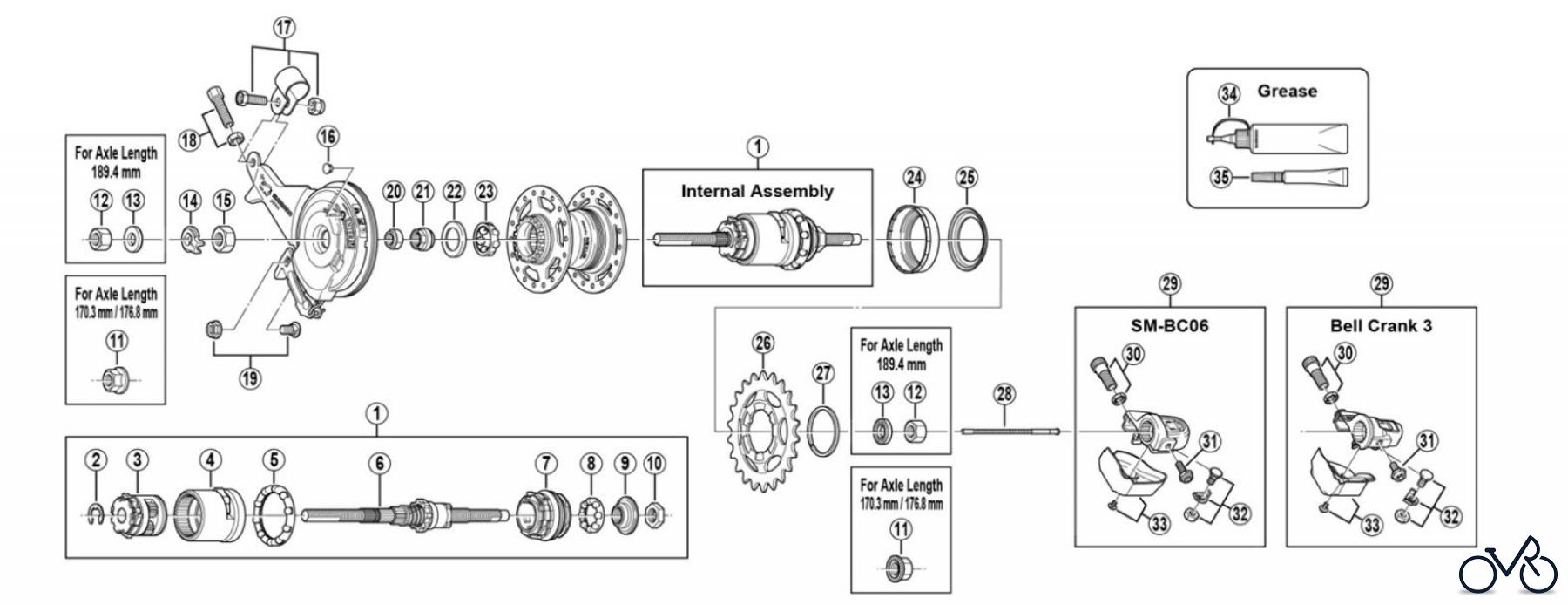

Vous trouverez ici le dessin des pièces détachées pour Shimano SG Getriebenabe /Nabenschaltung SG-3R40 (-1836C) NEXUS 3-SPEED HUB w/Hi-Power Roller Brake. Sélectionnez la pièce détachée pour vélo désirée dans la liste des pièces détachées pour votre Shimano vélo et commandez simplement en ligne. Nous avons toujours beaucoup de pièces détachées Shimano en stock pour vous.

Fréquemment requis Shimano SG-3R40 (-1836C) NEXUS 3-SPEED HUB w/Hi-Power Roller Brake

Driver Unit

Numéro d'article: Y-33S90200
Recherche pour: Y-33S90200
Fabricant: Fahrrad
Shimano Pièce de rechange SG-3R40 (-1836C) NEXUS 3-SPEED HUB w/Hi-Power Roller Brake

13.95 €

Y compris la TVA dans UE, + frais d'envoi.

Pos.	Numéro d'article	Description
1	Y-33S90700	Internal Assembly (Axle Length 170.3 mm) Y33S90700
1	Y-33S98270	Internal Assembly (Axle Length 176.8 mm) Y33S98270
1	Y-33S90710	Internal Assembly (Axle Length 189.4 mm) Y33S90710
2	Y-33Y19000	Stop Ring ( ?9.6 mm) Y33Y19000
3	Y-33S90400	Carrier Unit Y33S90400
4	Y-33S90300	Ring Gear Unit Y33S90300
5	Y-33R90220	Ball Retainer K (7/32" x 10) Y33R90220
6	Y-33S98040	Axle Unit (Axle Length 170.3 mm) Y33S98040
6	Y-33S98280	Axle Unit (Axle Length 176.8 mm) Y33S98280
6	Y-33S98050	Axle Unit (Axle Length 189.4 mm) Y33S98050
7	Y-33S90200	Driver Unit Y33S90200
8	Y-33R90210	Ball Retainer J (7/32" x 8) Y33R90210
9	Y-33R90500	Right Hand Cone w/Dust Seal Y33R90500
10	Y-33R08100	Right Hand Lock Nut (5 mm) for Axle Length 170.3 mm / 189.4 mm Y33R08100
10	Y-32530100	Right Hand Lock Nut (9.9 mm) for Axle Length 176.8 mm Y32530100
11	Y-22015010	Flange Nut for Axle Length 170.3 mm / 176.8 mm Y22015010
12	Y-32170020	Hub Nut (7 mm) for Axle Length 189.4 mm Y32170020
12	Y-20003000	Hub Nut (9 mm) for Axle Length 189.4 mm Y20003000
13	Y-22006000	Washer (2 mm) for Axle Length 189.4 mm Y22006000
13	Y-22006040	Washer (3.2 mm) for Axle Length 189.4 mm Y22006040
14	Y-33Z20200	Non-turn Washer 2 (Yellow) Y33Z20200
15	Y-75V13000	Brake Unit Fixing Nut (8.2 mm) for Axle Length 170.3 mm / 189.4 mm Y75V13000
15	Y-75V13010	Brake Unit Fixing Nut (9.7 mm) for Axle Length 176.8 mm Y75V13010
16	Y-75F11000	Grease Hole Cap Y75F11000
17	Y-75M98050	Brake Arm Clip Unit (?15 mm) Y75M98050
17	Y-33F98090	Brake Arm Clip Unit (5/8") Y33F98090
17	Y-75M98060	Brake Arm Clip Unit (11/16") Y75M98060
17	Y-33F98100	Brake Arm Clip Unit (3/4") Y33F98100
18	Y-75Y98050	Brake Cable Adjusting Bolt & Nut Y75Y98050
19	Y-75Y98060	Inner Cable Fixing Bolt & Nut Y75Y98060
20	Y-31Z06020	Lock Nut for Left Hand Cone Y31Z06020
21	Y-33M37000	Left Hand Cone Y33M37000
22	Y-31Z07000	Left Hand Dust Cap Y31Z07000
23	Y-32190220	Ball Retainer A (1/4" x 7) Y32190220
24	Y-33R05000	Right Hand Dust Cap A Y33R05000
25	Y-33R52001	Right Hand Dust Cap B Y33R52001
26	Y-32203200	Sprocket Wheel 16T (Black) Y32203200
26	Y-73T21830	Sprocket Wheel 18T (Black) Y73T21830
26	Y-73T21930	Sprocket Wheel 19T (Black) Y73T21930
26	Y-73T22030	Sprocket Wheel 20T (Black) Y73T22030
26	Y-73T22130	Sprocket Wheel 21T (Black) Y73T22130
26	Y-73T22230	Sprocket Wheel 22T (Black) Y73T22230
26	Y-73T22330	Sprocket Wheel 23T (Black) Y73T22330
27	Y-32520110	Snap Ring C Y32520110
28	Y-33R98080	Push Rod (81.85 mm) for Axle Length 170.3 mm Y33R98080
28	Y-33S98180	Push Rod (86.85 mm) for Axle Length 176.8 mm Y33S98180
28	Y-33S98290	Push Rod (90.75 mm) for Axle Length 189.4 m Y33S98290
29	Y-6P198030	SM-BC06 Bell Crank Unit Y6P198030
29	Y-33S95100	Bell Crank 3 Unit Y33S95100
30	Y-33S98010	Cable Adjusting Bolt & Nut Y33S98010
31	Y-33S74000	Bell Crank Body Fixing Bolt for SM-BC06 Y33S74000
31	Y-33S57000	Bell Crank Body Fixing Bolt for Bell Crank 3 Y33S57000
32	Y-33S98030	Inner Cable Fixing Bolt Unit Y33S98030
33	Y-6P198040	Bell Crank Cover & Fixing Screw for SM-BC06 Y6P198040
33	Y-33S98020	Bell Crank Cover & Fixing Screw for Bell Crank 3 Y33S98020
34	Y-04120800	Internal Hub Grease (Net. 100g) Y04120800
34	Y-04120400	Roller Brake Grease (Net. 100g) Y04120400
35	Y-04140020	Roller Brake Grease (Net. 10g) Y04140020
