Shimano SG-C3001-7D (-4221B) Nexus 7 Gang Nabenschaltung

SG-C3001-7D (-4221B) Nexus 7 Gang Nabenschaltung SG Getriebenabe /Nabenschaltung

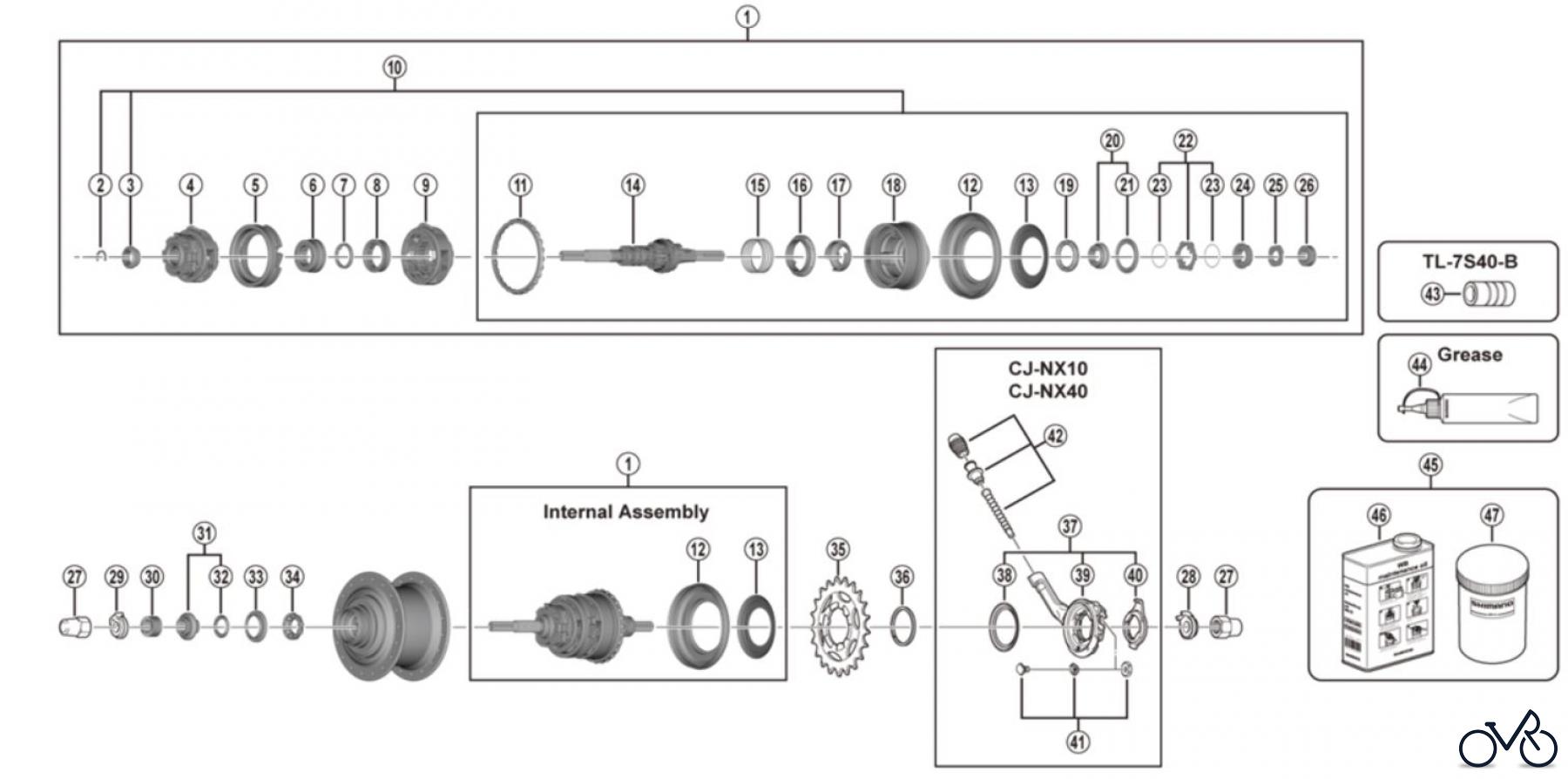

Vous trouverez ici le dessin des pièces détachées pour Shimano SG Getriebenabe /Nabenschaltung SG-C3001-7D (-4221B) Nexus 7 Gang Nabenschaltung. Sélectionnez la pièce détachée pour vélo désirée dans la liste des pièces détachées pour votre Shimano vélo et commandez simplement en ligne. Nous avons toujours beaucoup de pièces détachées Shimano en stock pour vous.

Fréquemment requis Shimano SG-C3001-7D (-4221B) Nexus 7 Gang Nabenschaltung

Right Hand Dust Cap B A A

Numéro d'article: Y-35C07000
Recherche pour: Y-35C07000
Fabricant: Fahrrad
Shimano Pièce de rechange SG-C3001-7D (-4221B) Nexus 7 Gang Nabenschaltung

1.95 €

Y compris la TVA dans UE, + frais d'envoi.

Pos.	Numéro d'article	Description
1	Y-3EW98010	Internal Assembly (Axle Length 187 mm) Y3EW98010
2	Y-30807000	Stop Ring for Carrier Guide 2 A A Y30807000
3	Y-33E03000	Carrier Guide 2 A A Y33E03000
4	Y-3EW98020	Carrier Unit 2 Y3EW98020
5	Y-38P98040	Ring Gear Unit 2 A A Y38P98040
6	Y-3EV09000	Sun Gear 3 Y3EV09000
7	Y-38R11000	Sun Gear Guide Ring 2 A A Y38R11000
8	Y-3EV08000	Sun Gear 2 Y3EV08000
9	Y-38P98050	Carrier Unit 1 A A Y38P98050
10	Y-3EW98030	Carrier Guide 2 / Axle & Driver Unit (Axle Length 187 mm) Y3EW98030
11	Y-3EV98220	Ball Retainer H (3/16" x 26) Y3EV98220
12	Y-35C07000	Right Hand Dust Cap B A A Y35C07000
13	Y-33Z26000	Right Hand Dust Cap C A A Y33Z26000
14	Y-3EW98040	Axle Unit (Axle Length 187 mm) Y3EW98040
15	Y-33024000	Return Spring A A A Y33024000
16	Y-33Z10000	Gear Shifting Cam A A Y33Z10000
17	Y-3EV02000	Feed Cam Y3EV02000
18	Y-35D98120	Driver Unit A A Y35D98120
19	Y-33091600	Ball Retainer F (3/16" x 12) A A Y33091600
20	Y-39098160	Right Hand Cone w/Seal A A Y39098160
21	Y-35K07000	Right Hand Cone Seal A A Y35K07000
22	Y-33F98040	Driver Plate w/Seal A A Y33F98040
23	Y-33012000	Driver Plate Seal A A Y33012000
24	Y-33E98120	Lock Washer A A Y33E98120
25	Y-33Z08000	Stop Washer A A Y33Z08000
26	Y-3EW05000	Right Hand Lock Nut Y3EW05000
27	Y-31414010	Cap Nut (3/8") A A Y31414010
28	Y-33Z20500	Non-turn Washer 5R (Yellow) A A Y33Z20500
28	Y-33M39600	Non-turn Washer 6R (Silver) A A Y33M39600
28	Y-33M39700	Non-turn Washer 7R (Black) A A Y33M39700
29	Y-33M39510	Non-turn Washer 5L (Brown) A A Y33M39510
29	Y-33M39610	Non-turn Washer 6L (White) A A Y33M39610
29	Y-33M39710	Non-turn Washer 7L (Gray) A A Y33M39710
30	Y-35Z19000	Left Hand Serated Lock Nut (10.7 mm) Y35Z19000
31	Y-31L98040	Left Hand Cone w/Dust Cap & Seal Ring Y31L98040
32	Y-37710000	Seal Ring Y37710000
33	Y-32T08100	Left Hand Inner Dust Cap Y32T08100
34	Y-36U98030	Ball Retainer (7/32" x 9) Y36U98030
35	Y-32203220	Sprocket Wheel 16T (Silver) A A Y32203220
35	Y-32203420	Sprocket Wheel 18T (Silver) A A Y32203420
35	Y-32203520	Sprocket Wheel 19T (Silver) A A Y32203520
35	Y-32203620	Sprocket Wheel 20T (Silver) A A Y32203620
35	Y-33060000	Sprocket Wheel 21T (Silver) A A Y33060000
35	Y-33060100	Sprocket Wheel 22T (Silver) A A Y33060100
35	Y-33060200	Sprocket Wheel 23T (Silver) A A Y33060200
36	Y-32120100	Snap Ring C A A Y32120100
37	Y-74Y98050	CJ-NX10 Cassette Joint Unit A A Y74Y98050
37	Y-74V98010	CJ-NX10 Cassette Joint Unit for Belt drive system Y74V98010
37	Y-74Y98100	CJ-NX40 Cassette Joint Unit Y74Y98100
38	Y-74Y18000	Driver Cap A A Y74Y18000
39	Y-74Y93100	CJ-NX10 Cassette Joint A A Y74Y93100
39	Y-74V98020	CJ-NX10 Cassette Joint for Belt drive system Y74V98020
39	Y-74Y98090	CJ-NX40 Cassette Joint Y74Y98090
40	Y-33Z98020	Cassette Joint Fixing Ring A A Y33Z98020
41	Y-74Y98030	Inner Cable Fixing Bolt Unit A A Y74Y98030
42	Y-74Y98160	Outer Casing Holder Unit for CJ-NX40 Y74Y98160
43	Y-30889000	TL-7S40-B Right Hand Cone Tool A A Y30889000
44	Y-04120800	Internal Hub Grease (Net. 100g) A A Y04120800
45	Y-00298010	WB maintenance oil set A A Y00298010
46	Y-00201000	WB maintenance oil (1L) A A Y00201000
47	Y-00201100	Bottle A A Y00201100
00	Y-35D08000	Right Hand Hub Cup Y35D08000
