Shimano SG-C7000-5R-5V (-4451B) NEXUS 5-speed E-Bike Dedicated Mechanical Internal Hub

SG-C7000-5R-5V (-4451B) NEXUS 5-speed E-Bike Dedicated Mechanical Internal Hub SG Getriebenabe /Nabenschaltung

Shimano SG Getriebenabe /Nabenschaltung SG-C7000-5R-5V (-4451B) NEXUS 5-speed E-Bike Dedicated Mechanical Internal Hub

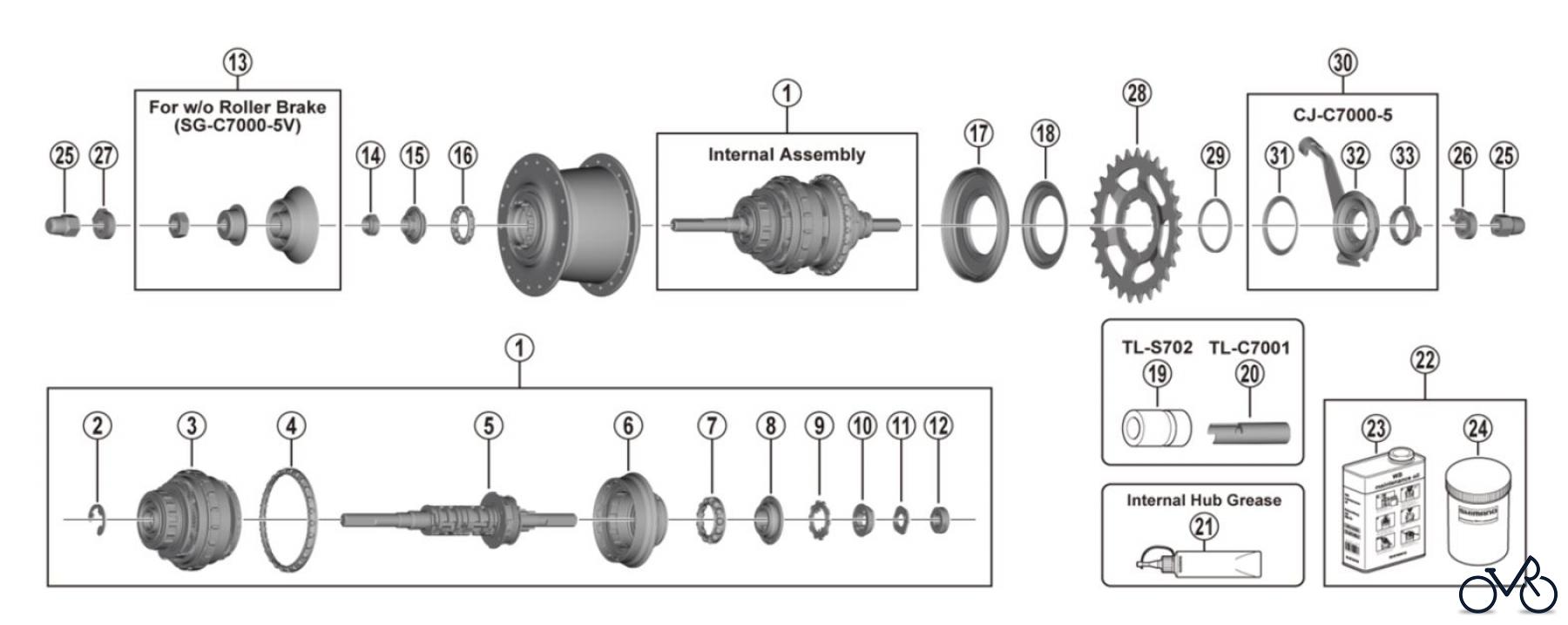

Vous trouverez ici le dessin des pièces détachées pour Shimano SG Getriebenabe /Nabenschaltung SG-C7000-5R-5V (-4451B) NEXUS 5-speed E-Bike Dedicated Mechanical Internal Hub. Sélectionnez la pièce détachée pour vélo désirée dans la liste des pièces détachées pour votre Shimano vélo et commandez simplement en ligne. Nous avons toujours beaucoup de pièces détachées Shimano en stock pour vous.

Pos.Numéro d'articleDescription
1 Y-3FG98010 Internal Assembly (Axle Length 187 mm) Y3FG98010
2 Y-3FF49000 Stop Ring Diameter (12 mm / 1.3 mm) A Y3FF49000
3 Y-3FF98020 Carrier Unit A Y3FF98020
4 Shimano Ball Retainer O (3/16" x 26) A A Y-38X98050 Ball Retainer O (3/16" x 26) A A Y38X98050
5 Y-3FG98020 Hub Axle Unit (Axle Length 187 mm) Y3FG98020
6 Y-3FF98040 Driver Unit A Y3FF98040
7 Shimano Ball Retainer A (7/32" x 13) A Y-3FF98050 Ball Retainer A (7/32" x 13) A Y3FF98050
8 Y-3FJ98030 Right Hand Cone w/Seal A Y3FJ98030
9 Shimano Drive Plate A Y-31L04000 Drive Plate A Y31L04000
10 Shimano Lock Washer A Y-31L98030 Lock Washer A Y31L98030
11 Shimano Joint Nut Stop Washer A A Y-34R09000 Joint Nut Stop Washer A A Y34R09000
12 Shimano Right Hand Serated Lock Nut (5.4 mm) A Y-35Z11000 Right Hand Serated Lock Nut (5.4 mm) A Y35Z11000
13 Shimano Left Hand Dust Cap Unit Y-34R98100 Left Hand Dust Cap Unit Y34R98100
14 Shimano Lock Nut for Left Hand Cone A Y-31Z06030 Lock Nut for Left Hand Cone A Y31Z06030
15 Shimano Left Hand Cone w/Dust Cap A Y-35J90000 Left Hand Cone w/Dust Cap A Y35J90000
16 Shimano Ball Retainer P (3/16" x 13) A Y-34R98070 Ball Retainer P (3/16" x 13) A Y34R98070
17 Shimano Right Hand Dust Cap A w/Seal A B Y-37G98080 Right Hand Dust Cap A w/Seal A B Y37G98080
18 Y-3FF47000 Right Hand Dust Cap C A Y3FF47000
19 Y-13098022 TL-S702 Right Hand Cone Installation Tool A Y13098022
20 Y-70821000 TL-C7001 Right Hand Cone Removal Tool A Y70821000
21 Shimano Internal Hub Grease (Net. 100g) A A Y-04120800 Internal Hub Grease (Net. 100g) A A Y04120800
22 Y-00298010 WB maintenance oil set A A Y00298010
23 Y-00201000 WB maintenance oil (1L) A A Y00201000
24 Shimano Bottle A A Y-00201100 Bottle A A Y00201100
25 Shimano Cap Nut (3/8") Y-31414010 Cap Nut (3/8") Y31414010
26 Shimano Non-turn Washer 5R (Yellow) Y-33Z20500 Non-turn Washer 5R (Yellow) Y33Z20500
26 Shimano Non-turn Washer 6R (Silver) Y-33M39600 Non-turn Washer 6R (Silver) Y33M39600
26 Shimano Non-turn Washer 7R (Black) Y-33M39700 Non-turn Washer 7R (Black) Y33M39700
26 Shimano Non-turn Washer 8R (Dark Blue) Y-34R85010 Non-turn Washer 8R (Dark Blue) Y34R85010
27 Shimano Non-turn Washer 5L (Brown) Y-33M39510 Non-turn Washer 5L (Brown) Y33M39510
27 Y-33M39610 Non-turn Washer 6L (White) Y33M39610
27 Shimano Non-turn Washer 7L (Gray) Y-33M39710 Non-turn Washer 7L (Gray) Y33M39710
27 Shimano Non-turn Washer 8L (Dark Green) Y-34R85000 Non-turn Washer 8L (Dark Green) Y34R85000
28 Shimano Sprocket Wheel 24T (CS-C7000) Y-0FM24000 Sprocket Wheel 24T (CS-C7000) Y0FM24000
28 Y-0FM01000 Sprocket Wheel 27T (CS-C7000) Y0FM01000
28 Y-0FM30000 Sprocket Wheel 30T (CS-C7000) Y0FM30000
29 Shimano Snap Ring Y-7ZP04000 Snap Ring Y7ZP04000
30 Y7ZP98010 CJ-C7000-5 Cassette Joint Unit Y7ZP98010
30 Y7ZP98030 CJ-C7000-5 Cassette Joint Unit for Belt drive system Y7ZP98030
31 Y7ZP05000 Driver Cap Y7ZP05000
32 Y7ZP98020 CJ-C7000-5 Cassette Joint Y7ZP98020
32 Y7ZP98040 CJ-C7000-5 Cassette Joint for Belt drive system Y7ZP98040
33 Y33Z98020 Cassette Joint Fixing Ring Y33Z98020
