Shimano SG-C7050-5D (-4454B) NEXUS 5-speed E-Bike Dedicated DI2 Internal Hub

SG-C7050-5D (-4454B) Shimano NEXUS 5-speed E-Bike Dedicated DI2 Internal Hub SG Getriebenabe /Nabenschaltung

Shimano SG Getriebenabe /Nabenschaltung SG-C7050-5D (-4454B) Shimano NEXUS 5-speed E-Bike Dedicated DI2 Internal Hub

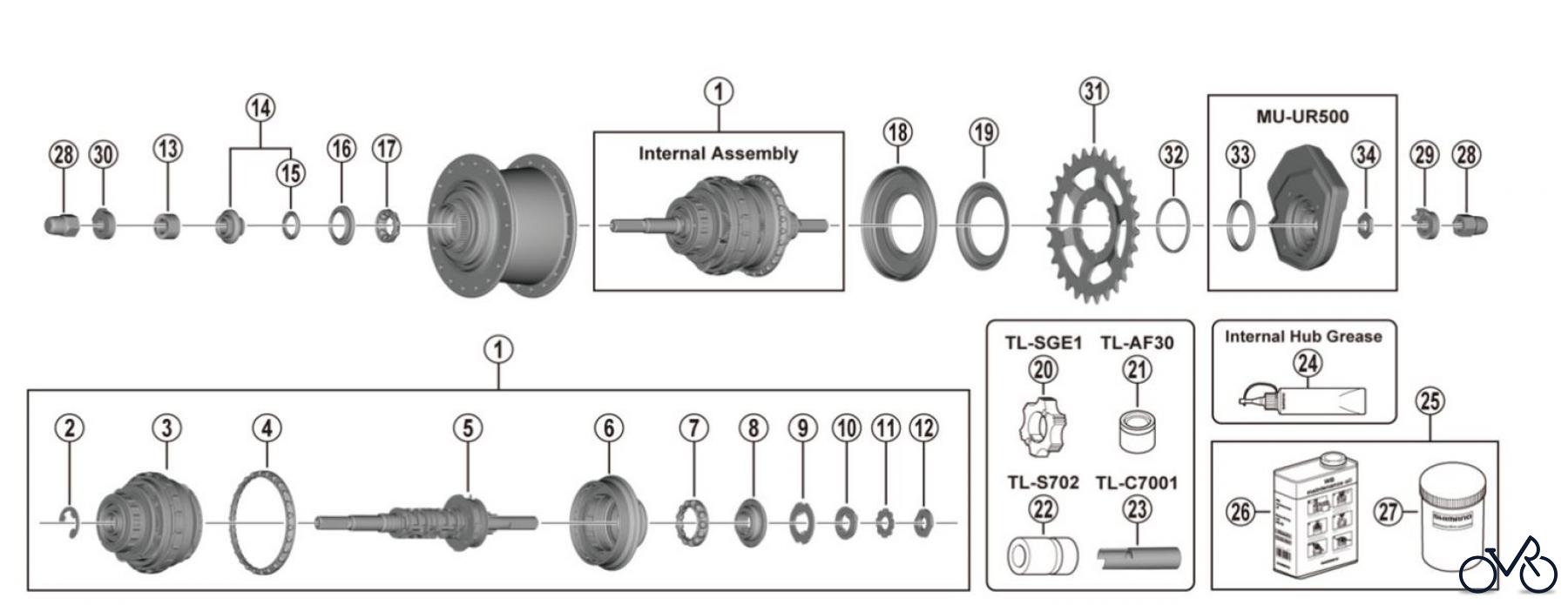

Vous trouverez ici le dessin des pièces détachées pour Shimano SG Getriebenabe /Nabenschaltung SG-C7050-5D (-4454B) Shimano NEXUS 5-speed E-Bike Dedicated DI2 Internal Hub. Sélectionnez la pièce détachée pour vélo désirée dans la liste des pièces détachées pour votre Shimano vélo et commandez simplement en ligne. Nous avons toujours beaucoup de pièces détachées Shimano en stock pour vous.

Pos.Numéro d'articleDescription
1 Y-3FF98010 Internal Assembly (Axle Length 187 mm) Y3FF98010
2 Y-3FF49000 Stop Ring Diameter (12 mm / 1.3 mm) A Y3FF49000
3 Y-3FF98020 Carrier Unit A Y3FF98020
4 Shimano Ball Retainer O (3/16" x 26) A A Y-38X98050 Ball Retainer O (3/16" x 26) A A Y38X98050
5 Y-3FF98030 Hub Axle Unit (Axle Length 187 mm) Y3FF98030
6 Y-3FF98040 Driver Unit A Y3FF98040
7 Shimano Ball Retainer A (7/32" x 13) A Y-3FF98050 Ball Retainer A (7/32" x 13) A Y3FF98050
8 Y-3FF98060 Right Hand Cone w/Seal Y3FF98060
9 Y-37S07000 Drive Plate A Y37S07000
10 Shimano Lock Washer A Y-37S98050 Lock Washer A Y37S98050
11 Y-38F17000 Right Hand Lock Nut Washer A Y38F17000
12 Shimano Right Hand Lock Nut (3.7 mm) A Y-38F16000 Right Hand Lock Nut (3.7 mm) A Y38F16000
13 Shimano Left Hand Serated Lock Nut (10.7 mm) A A Y-35Z19000 Left Hand Serated Lock Nut (10.7 mm) A A Y35Z19000
14 Shimano Left Hand Cone w/Dust Cap & Seal Ring A A Y-31L98040 Left Hand Cone w/Dust Cap & Seal Ring A A Y31L98040
15 Shimano Seal Ring A A Y-37710000 Seal Ring A A Y37710000
16 Shimano Left Hand Inner Dust Cap A A Y-32T08100 Left Hand Inner Dust Cap A A Y32T08100
17 Shimano Ball Retainer (7/32" x 9) A A Y-36U98030 Ball Retainer (7/32" x 9) A A Y36U98030
18 Shimano Right Hand Dust Cap A w/Seal A A Y-37G98080 Right Hand Dust Cap A w/Seal A A Y37G98080
19 Y-3FF47000 Right Hand Dust Cap C A Y3FF47000
20 Shimano TL-SGE1 1st Gear Set Tool A Y-20W10000 TL-SGE1 1st Gear Set Tool A Y20W10000
21 Y-70811000 TL-AF30 Left Hand Inner Dust Cap Installation Tool A A Y70811000
22 Y-13098022 TL-S702 Right Hand Cone Installation Tool A A Y13098022
23 Y-70821000 TL-C7001 Right Hand Cone Removal Tool A Y70821000
24 Shimano Internal Hub Grease (Net. 100g) A A Y-04120800 Internal Hub Grease (Net. 100g) A A Y04120800
25 Y-00298010 WB maintenance oil set A A Y00298010
26 Y-00201000 WB maintenance oil (1L) A A Y00201000
27 Shimano Bottle A A Y-00201100 Bottle A A Y00201100
28 Shimano Cap Nut (3/8") Y-31414010 Cap Nut (3/8") Y31414010
29 Shimano Non-turn Washer 5R (Yellow) Y-33Z20500 Non-turn Washer 5R (Yellow) Y33Z20500
29 Shimano Non-turn Washer 6R (Silver) Y-33M39600 Non-turn Washer 6R (Silver) Y33M39600
29 Shimano Non-turn Washer 7R (Black) Y-33M39700 Non-turn Washer 7R (Black) Y33M39700
29 Shimano Non-turn Washer 8R (Dark Blue) Y-34R85010 Non-turn Washer 8R (Dark Blue) Y34R85010
30 Shimano Non-turn Washer 5L (Brown) Y-33M39510 Non-turn Washer 5L (Brown) Y33M39510
30 Y-33M39610 Non-turn Washer 6L (White) Y33M39610
30 Shimano Non-turn Washer 7L (Gray) Y-33M39710 Non-turn Washer 7L (Gray) Y33M39710
30 Shimano Non-turn Washer 8L (Dark Green) Y-34R85000 Non-turn Washer 8L (Dark Green) Y34R85000
31 Shimano Sprocket Wheel 24T (CS-C7000) Y-0FM24000 Sprocket Wheel 24T (CS-C7000) Y0FM24000
31 Y-0FM01000 Sprocket Wheel 27T (CS-C7000) Y0FM01000
31 Y-0FM30000 Sprocket Wheel 30T (CS-C7000) Y0FM30000
32 Shimano Snap Ring Y-7ZP04000 Snap Ring Y7ZP04000
33 Y-78U00022 Motor Unit Seal Y78U00022
34 Shimano Lock NutY-707000Y0 Lock Nut Y707000Y0
