Shimano SG-C7050-5C-4453B NEXUS 5-Ganng E-Bike Dedicated DI2 Nabenschaltung

SG-C7050-5C-4453B NEXUS 5-Ganng E-Bike Dedicated DI2 Nabenschaltung SG Getriebenabe /Nabenschaltung

Shimano SG Getriebenabe /Nabenschaltung SG-C7050-5C-4453B NEXUS 5-Ganng E-Bike Dedicated DI2 Nabenschaltung

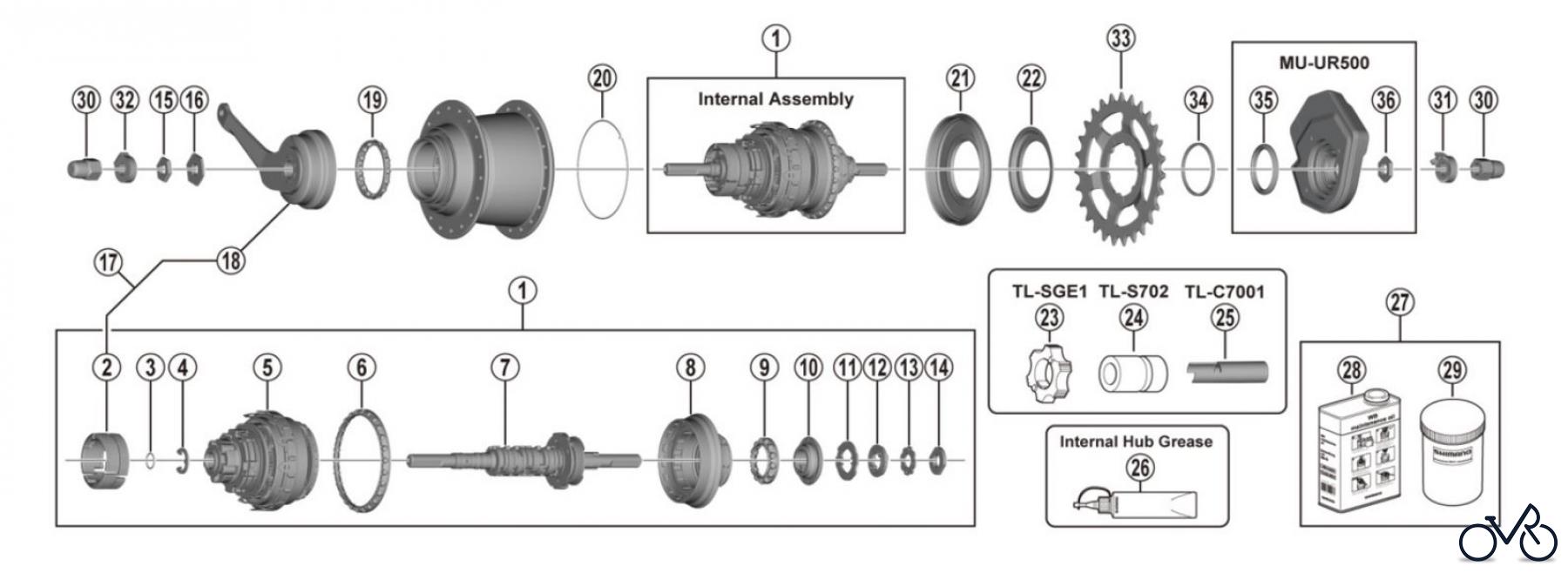

Vous trouverez ici le dessin des pièces détachées pour Shimano SG Getriebenabe /Nabenschaltung SG-C7050-5C-4453B NEXUS 5-Ganng E-Bike Dedicated DI2 Nabenschaltung. Sélectionnez la pièce détachée pour vélo désirée dans la liste des pièces détachées pour votre Shimano vélo et commandez simplement en ligne. Nous avons toujours beaucoup de pièces détachées Shimano en stock pour vous.

Pos.Numéro d'articleDescription
1 Y-3FE98010 Internal Assembly (Axle Length 187 mm) Y3FE98010
2 Shimano Brake Shoe Unit (3 pcs.) A Y-37G98020 Brake Shoe Unit (3 pcs.) A Y37G98020
3 Shimano O-Ring A Y-37E08000 O-Ring A Y37E08000
4 Y-3FE10000 E-Ring (D9.6) Y3FE10000
5 Y-3FE98020 Carrier Unit Y3FE98020
6 Shimano Ball Retainer O (3/16" x 26) A A Y-38X98050 Ball Retainer O (3/16" x 26) A A Y38X98050
7 Y-3FE98030 Hub Axle Unit (Axle Length 187 mm) Y3FE98030
8 Y-3FF98040 Driver Unit A Y3FF98040
9 Shimano Ball Retainer A (7/32" x 13) A Y-3FF98050 Ball Retainer A (7/32" x 13) A Y3FF98050
10 Y-3FF98060 Right Hand Cone w/Seal A Y3FF98060
11 Y-37S07000 Drive Plate A A Y37S07000
12 Shimano Lock Washer A A Y-37S98050 Lock Washer A A Y37S98050
13 Y-38F17000 Right Hand Lock Nut Washer A A Y38F17000
14 Shimano Right Hand Lock Nut (3.7 mm) A A Y-38F16000 Right Hand Lock Nut (3.7 mm) A A Y38F16000
15 Shimano Left Hand Lock Nut (3 mm) A Y-35P28000 Left Hand Lock Nut (3 mm) A Y35P28000
16 Y-35P22000 Stop Nut A Y35P22000
17 Y-31N98060 Brake Shoe Unit & Brake Arm Unit A Y31N98060
18 Shimano Brake Arm Unit (3 Serration) A Y-31N98050 Brake Arm Unit (3 Serration) A Y31N98050
19 Shimano Ball Retainer B (3/16" x 16) A Y-38R98190 Ball Retainer B (3/16" x 16) A Y38R98190
20 Y-35J11100 Hub Shell Slide Spring A Y35J11100
21 Shimano Right Hand Dust Cap A w/Seal A Y-37G98080 Right Hand Dust Cap A w/Seal A Y37G98080
22 Y-3FF47000 Right Hand Dust Cap C A Y3FF47000
23 Shimano TL-SGE1 1st Gear Set Tool A A Y-20W10000 TL-SGE1 1st Gear Set Tool A A Y20W10000
24 Y-13098022 TL-S702 Right Hand Cone Installation Tool A A Y13098022
25 Y-70821000 TL-C7001 Right Hand Cone Removal Tool A Y70821000
26 Shimano Internal Hub Grease (Net. 100g) A A Y-04120800 Internal Hub Grease (Net. 100g) A A Y04120800
27 Y-00298010 WB maintenance oil set A A Y00298010
28 Y-00201000 WB maintenance oil (1L) A A Y00201000
29 Shimano Bottle A A Y-00201100 Bottle A A Y00201100
30 Shimano Cap Nut (3/8") Y-31414010 Cap Nut (3/8") Y31414010
31 Shimano Non-turn Washer 5R (Yellow) Y-33Z20500 Non-turn Washer 5R (Yellow) Y33Z20500
31 Shimano Non-turn Washer 6R (Silver) Y-33M39600 Non-turn Washer 6R (Silver) Y33M39600
31 Shimano Non-turn Washer 7R (Black) Y-33M39700 Non-turn Washer 7R (Black) Y33M39700
31 Shimano Non-turn Washer 8R (Dark Blue) Y-34R85010 Non-turn Washer 8R (Dark Blue) Y34R85010
32 Shimano Non-turn Washer 5L (Brown) Y-33M39510 Non-turn Washer 5L (Brown) Y33M39510
32 Y-33M39610 Non-turn Washer 6L (White) Y33M39610
32 Shimano Non-turn Washer 7L (Gray) Y-33M39710 Non-turn Washer 7L (Gray) Y33M39710
32 Shimano Non-turn Washer 8L (Dark Green) Y-34R85000 Non-turn Washer 8L (Dark Green) Y34R85000
33 Shimano Sprocket Wheel 24T (CS-C7000) Y-0FM24000 Sprocket Wheel 24T (CS-C7000) Y0FM24000
33 Y-0FM01000 Sprocket Wheel 27T (CS-C7000) Y0FM01000
33 Y-0FM30000 Sprocket Wheel 30T (CS-C7000) Y0FM30000
34 Shimano Snap Ring Y-7ZP04000 Snap Ring Y7ZP04000
35 Y-78U00022 Motor Unit Seal Y78U00022
36 Shimano Lock NutY-707000Y0 Lock Nut Y707000Y0
