Shimano SG-C6061-8R-8V-4112 NEXUS 8-Gang Nabenschaltung

SG-C6061-8R-8V-4112 NEXUS 8-Gang Nabenschaltung SG Getriebenabe /Nabenschaltung

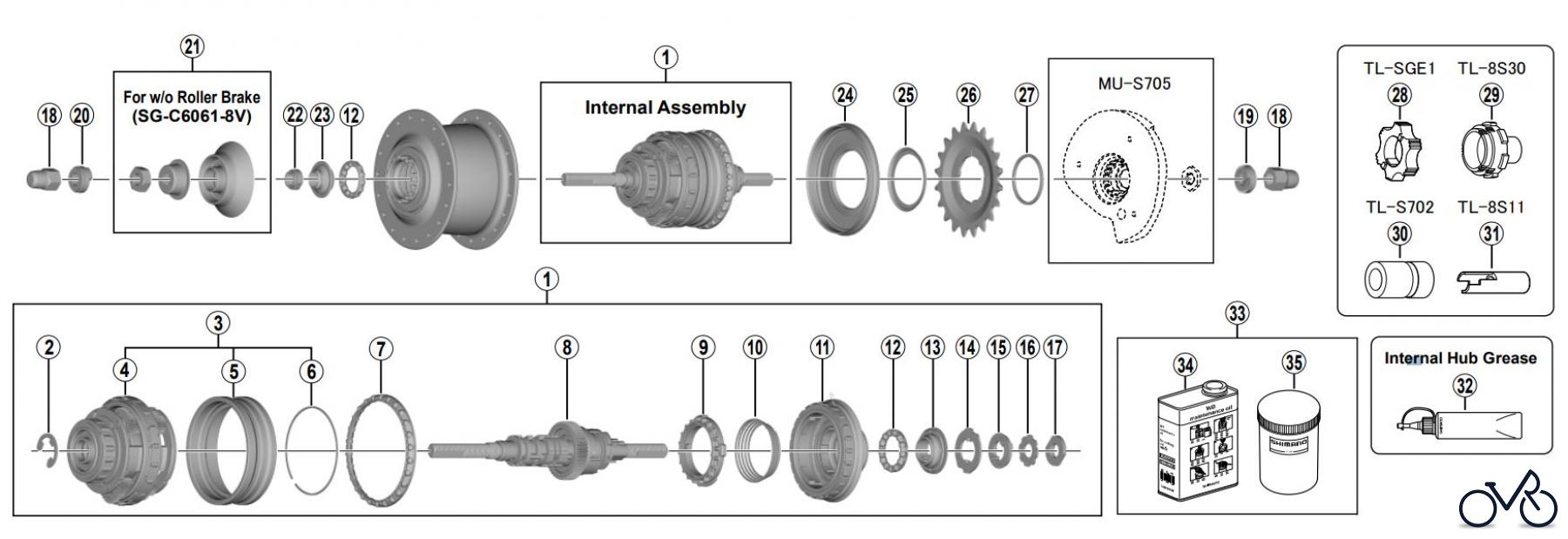

Vous trouverez ici le dessin des pièces détachées pour Shimano SG Getriebenabe /Nabenschaltung SG-C6061-8R-8V-4112 NEXUS 8-Gang Nabenschaltung. Sélectionnez la pièce détachée pour vélo désirée dans la liste des pièces détachées pour votre Shimano vélo et commandez simplement en ligne. Nous avons toujours beaucoup de pièces détachées Shimano en stock pour vous.

Pos.	Numéro d'article	Description
1	Y-3EC98010	Internal Assembly (Axle Length 187 mm) B Y3EC98010
2	Y-34R79000	Stop Ring (ø12 / 1.0 mm) A A Y34R79000
2	Y-34R79010	Stop Ring (ø12 / 1.3 mm) A A Y34R79010
2	Y-34R79020	Stop Ring (ø12 / 1.6 mm) A A Y34R79020
3	Y-3EG98020	Ring Gear Unit B B Y3EG98020
4	Y-3EG98030	Carrier Unit B B Y3EG98030
5	Y-36W07000	Ring Gear 1 A A Y36W07000
6	Y-34R80000	Ring Gear 1 Stop Ring A A Y34R80000
7	Y-38X98050	Ball Retainer O (3/16" x 26) A A Y38X98050
8	Y-3EC98020	Hub Axle Unit (Axle Length 187 mm) B Y3EC98020
9	Y-34R98050	Clutch Unit A A Y34R98050
10	Y-34R21000	Return Spring A A A Y34R21000
11	Y-37L98020	Driver Unit A A Y37L98020
12	Y-34R98070	Ball Retainer P (3/16" x 13) A A Y34R98070
13	Y-37S98040	Right Hand Cone w/Seal A Y37S98040
14	Y-37S07000	Driver Plate A Y37S07000
15	Y-37S98050	Lock Washer A Y37S98050
16	Y-38F17000	Right Hand Lock Nut Washer A Y38F17000
17	Y-38F16000	Right Hand Lock Nut (3.7 mm) A Y38F16000
18	Y-31414010	Cap Nut (3/8") A A Y31414010
19	Y-33Z20500	Non-turn Washer 5R (Yellow) A A Y33Z20500
19	Y-33M39600	Non-turn Washer 6R (Silver) A A Y33M39600
19	Y-33M39700	Non-turn Washer 7R (Black) A A Y33M39700
19	Y-34R85010	Non-turn Washer 8R (Dark Blue) A A Y34R85010
20	Y-33M39510	Non-turn Washer 5L (Brown) A A Y33M39510
20	Y-33M39610	Non-turn Washer 6L (White) A A Y33M39610
20	Y-33M39710	Non-turn Washer 7L (Gray) A A Y33M39710
20	Y-34R85000	Non-turn Washer 8L (Dark Green) A A Y34R85000
21	Y-34R98100	Left Hand Dust Cap Unit A A Y34R98100
22	Y-31Z06030	Lock Nut for Left Hand Cone A A Y31Z06030
23	Y-35J90000	Left Hand Cone w/Dust Cap A A Y35J90000
24	Y-34R98110	Right Hand Dust Cap A w/Seal A Y34R98110
25	Y-34R0E000	Right Hand Dust Cap B A Y34R0E000
26	Y-32203220	Sprocket Wheel 16T (Silver) A A Y32203220
26	Y-32203420	Sprocket Wheel 18T (Silver) A A Y32203420
26	Y-32203520	Sprocket Wheel 19T (Silver) A A Y32203520
26	Y-32203620	Sprocket Wheel 20T (Silver) A A Y32203620
26	Y-33060000	Sprocket Wheel 21T (Silver) A A Y33060000
26	Y-33060100	Sprocket Wheel 22T (Silver) A A Y33060100
26	Y-33060200	Sprocket Wheel 23T (Silver) A A Y33060200
27	Y-32120100	Snap Ring C A A Y32120100
28	Y-20W10000	TL-SGE1 1st Gear Set Tool A Y20W10000
29	Y-70800300	TL-8S30 Carrier Unit Tool A A Y70800300
30	Y-13098022	TL-S702 Right Hand Cone Installation Tool A Y13098022
31	Y-70800600	TL-8S11 Right Hand Cone Removal Tool A Y70800600
32	Y-04120800	Internal Hub Grease (Net. 100g) A A Y04120800
33	Y-00298010	WB maintenance oil set A A Y00298010
34	Y-00201000	WB maintenance oil (1L) A A Y00201000
35	Y-00201100	Bottle A A Y00201100
0	Y-34R0D000	Right Hand Hub Cup Y34R0D000
