Shimano SG-3R75-B NEXUS 3-Speed Internal Hub

Internal hub maintenance oil set

Numéro d'article:
Y-00298010
Pos.:
40
N'est plus disponible à la livraison.
Shimano SG Getriebenabe /Nabenschaltung SG-3R75-B NEXUS 3-Speed Internal Hub

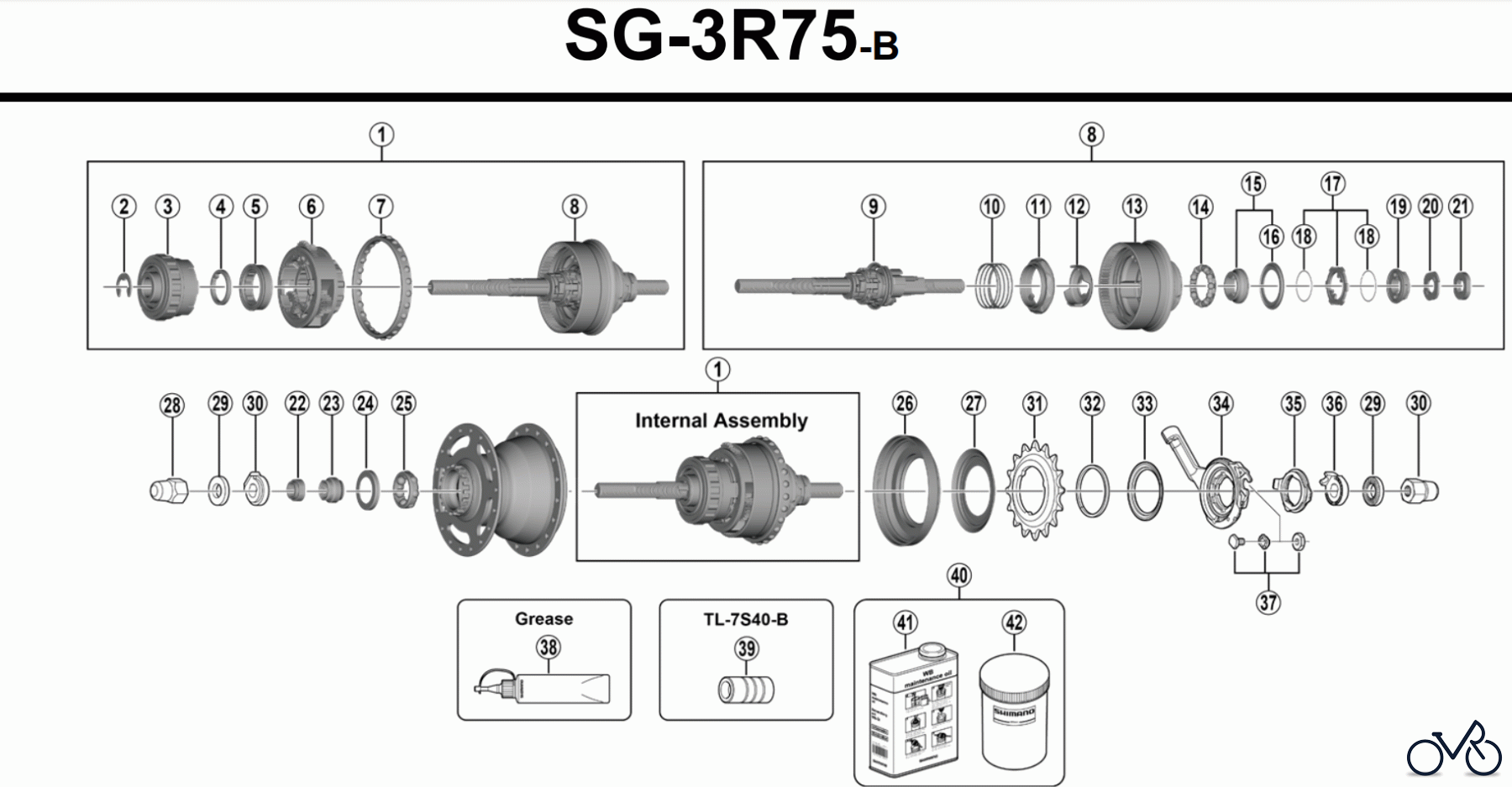

Vous trouverez ici le dessin des pièces détachées pour Shimano SG Getriebenabe /Nabenschaltung SG-3R75-B NEXUS 3-Speed Internal Hub. Sélectionnez la pièce détachée pour vélo désirée dans la liste des pièces détachées pour votre Shimano vélo et commandez simplement en ligne. Nous avons toujours beaucoup de pièces détachées Shimano en stock pour vous.

Pos.Numéro d'articleDescription
1 Y-3F198010 Internal assembly (axle length 174 mm) Y3F198010
1 Y-3F198020 Internal assembly (axle length 193 mm) Y3F198020
1 Y-3F198030 Internal assembly (axle length 197.6 mm) Y3F198030
1 Y-3F198040 Internal assembly (axle length 200 mm) Y3F198040
2 Y-33Y19000 Snap ring (diameter 9.6 mm) Y33Y19000
3 Y-39098050 Cam body unit Y39098050
4 Y-38R11000 Sun gear guide ring 2 Y38R11000
5 Y-3EV08000 Sun gear 2 Y3EV08000
6 Y-39098060 Carrier unit Y39098060
7 Shimano Ball retainer H (3/16" x 26) Y-3EV98220 Ball retainer H (3/16" x 26) Y3EV98220
8 Y-3F198050 Axle and driver unit (axle length 174 mm) Y3F198050
8 Y-3F198060 Axle and driver unit (axle length 193 mm) Y3F198060
8 Y-3F198070 Axle and driver unit (axle length 197.6 mm) Y3F198070
8 Y-3F198080 Axle and driver unit (axle length 200 mm) Y3F198080
9 Y-3F198090 Axle unit (axle length 174 mm) Y3F198090
9 Y-3F198100 Axle unit (axle length 193 mm) Y3F198100
9 Y-3F198110 Axle unit (axle length 197.6 mm) Y3F198110
9 Y-3F198120 Axle unit (axle length 200 mm) Y3F198120
10 Shimano Return spring A Y-33024000 Return spring A Y33024000
11 Y-33Z10000 Gear shifting cam Y33Z10000
12 Y-3F101000 Feed cam Y3F101000
13 Y-37P98060 Driver unit Y37P98060
14 Shimano Ball retainer F (3/16" x 12) Y-33091600 Ball retainer F (3/16" x 12) Y33091600
15 Shimano Right-hand cone with seal Y-39098160 Right-hand cone with seal Y39098160
16 Shimano Right-hand cone seal Y-35K07000 Right-hand cone seal Y35K07000
17 Shimano Driver plate with seal Y-33F98040 Driver plate with seal Y33F98040
18 Shimano Driver plate seal Y-33012000 Driver plate seal Y33012000
19 Shimano Lock washer Y-33E98120 Lock washer Y33E98120
20 Shimano Stop washer Y-33Z08000 Stop washer Y33Z08000
21 Shimano Right-hand lock nut (3.4 mm) Y-33Z07020 Right-hand lock nut (3.4 mm) Y33Z07020
22 Shimano Lock nut for left-hand cone Y-31Z06020 Lock nut for left-hand cone Y31Z06020
23 Y-33M37000 Left-hand cone Y33M37000
24 Y-31Z07000 Left-hand dust cap Y31Z07000
25 Shimano Ball retainer A (1/4" x 7) Y-32190220 Ball retainer A (1/4" x 7) Y32190220
26 Y-35B05000 Right-hand dust cap B Y35B05000
27 Shimano Right-hand dust cap C Y-33Z26000 Right-hand dust cap C Y33Z26000
28 Shimano Cap nut (3/8") Y-31414010 Cap nut (3/8") Y31414010
28 Y-20003000 Hub nut (9 mm) Y20003000
29 Y-22006040 Washer (3.2 mm) Y22006040
30 Shimano Non-turn washer 5L (brown) Y-33M39510 Non-turn washer 5L (brown) Y33M39510
30 Y-33M39610 Non-turn washer 6L (white) Y33M39610
30 Shimano Non-turn washer 7L (gray) Y-33M39710 Non-turn washer 7L (gray) Y33M39710
30 Shimano Non-turn washer 8L (dark green) Y-34R85000 Non-turn washer 8L (dark green) Y34R85000
30 Y-33M9802T Non-turn washer 9L (light brown) Y33M9802T
31 Shimano Sprocket 16T (Black) Y-32203200 Sprocket 16T (Black) Y32203200
31 Y-73T21830 Sprocket 18T (Black) Y73T21830
31 Y-73T21930 Sprocket 19T (Black) Y73T21930
31 Y-73T22030 Sprocket 20T (Black) Y73T22030
31 Y-73T22130 Sprocket 21T (Black) Y73T22130
31 Y-73T22230 Sprocket 22T (Black) Y73T22230
31 Y-73T22330 Sprocket 23T (Black) Y73T22330
32 Shimano Snap ring C Y-32120100 Snap ring C Y32120100
33 Shimano Driver cap Y-74Y18000 Driver cap Y74Y18000
34 Y-74Y98170 CJ-NX40 Cassette joint unit Y74Y98170
35 Shimano Cassette joint fixing ring Y-33Z98020 Cassette joint fixing ring Y33Z98020
36 Shimano Non-turn washer 5R (yellow) Y-33Z20500 Non-turn washer 5R (yellow) Y33Z20500
36 Shimano Non-turn washer 6R (silver) Y-33M39600 Non-turn washer 6R (silver) Y33M39600
36 Shimano Non-turn washer 7R (black) Y-33M39700 Non-turn washer 7R (black) Y33M39700
36 Shimano Non-turn washer 8R (dark blue) Y-34R85010 Non-turn washer 8R (dark blue) Y34R85010
36 Y-33M9801T Non-turn washer 9R (light green) Y33M9801T
37 Shimano Inner cable fixing bolt unit Y-74Y98030 Inner cable fixing bolt unit Y74Y98030
38 Y-04130100 Internal hub grease (100 g) Y04130100
38 Y-04130200 Internal hub grease (2.5 kg) Y04130200
39 Shimano TL-7S40-B Right-hand cone tool Y-30889000 TL-7S40-B Right-hand cone tool Y30889000
40 Y-00298010 Internal hub maintenance oil set Y00298010
41 Y-00201000 Internal hub maintenance oil (1 L) Y00201000
42 Shimano BottleY-00201100 Bottle Y00201100
