Shimano SG-3R75-B NEXUS 3-Speed Internal Hub

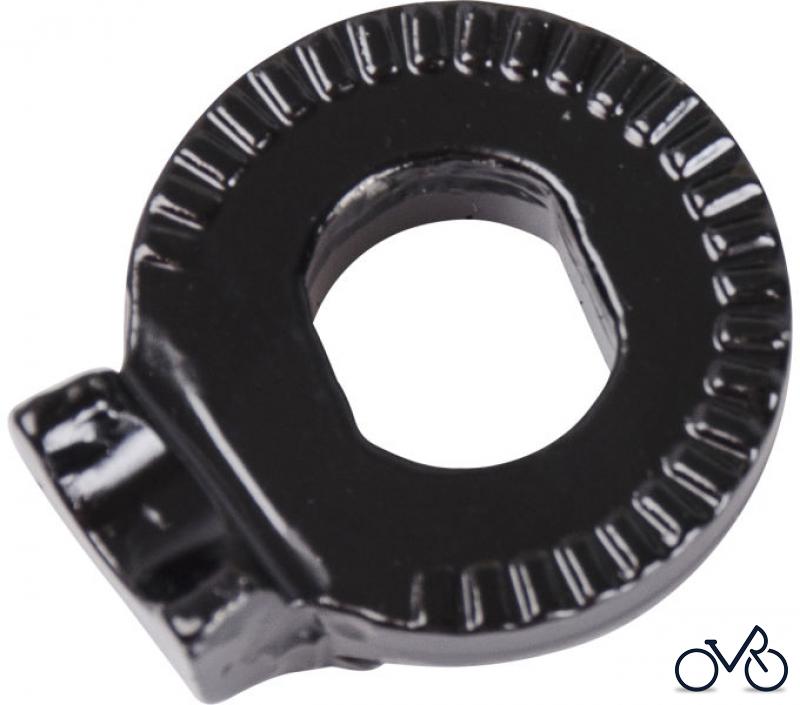

Non-turn washer 7R (black)

Numéro d'article:

Y-33M39700

Pos.:

5.95 €

Y compris la TVA dans UE, + frais d'envoi.

Coordonnées Sécurité des produits

L'article a été placé dans le panier.

Sera commandé pour vous. Délai de livraison environ 5 à 14 jours ouvrables.

Vous trouverez ici le dessin des pièces détachées pour Shimano SG Getriebenabe /Nabenschaltung SG-3R75-B NEXUS 3-Speed Internal Hub. Sélectionnez la pièce détachée pour vélo désirée dans la liste des pièces détachées pour votre Shimano vélo et commandez simplement en ligne. Nous avons toujours beaucoup de pièces détachées Shimano en stock pour vous.

Pos.	Numéro d'article	Description
1	Y-3F198010	Internal assembly (axle length 174 mm) Y3F198010
1	Y-3F198020	Internal assembly (axle length 193 mm) Y3F198020
1	Y-3F198030	Internal assembly (axle length 197.6 mm) Y3F198030
1	Y-3F198040	Internal assembly (axle length 200 mm) Y3F198040
2	Y-33Y19000	Snap ring (diameter 9.6 mm) Y33Y19000
3	Y-39098050	Cam body unit Y39098050
4	Y-38R11000	Sun gear guide ring 2 Y38R11000
5	Y-3EV08000	Sun gear 2 Y3EV08000
6	Y-39098060	Carrier unit Y39098060
7	Y-3EV98220	Ball retainer H (3/16" x 26) Y3EV98220
8	Y-3F198050	Axle and driver unit (axle length 174 mm) Y3F198050
8	Y-3F198060	Axle and driver unit (axle length 193 mm) Y3F198060
8	Y-3F198070	Axle and driver unit (axle length 197.6 mm) Y3F198070
8	Y-3F198080	Axle and driver unit (axle length 200 mm) Y3F198080
9	Y-3F198090	Axle unit (axle length 174 mm) Y3F198090
9	Y-3F198100	Axle unit (axle length 193 mm) Y3F198100
9	Y-3F198110	Axle unit (axle length 197.6 mm) Y3F198110
9	Y-3F198120	Axle unit (axle length 200 mm) Y3F198120
10	Y-33024000	Return spring A Y33024000
11	Y-33Z10000	Gear shifting cam Y33Z10000
12	Y-3F101000	Feed cam Y3F101000
13	Y-37P98060	Driver unit Y37P98060
14	Y-33091600	Ball retainer F (3/16" x 12) Y33091600
15	Y-39098160	Right-hand cone with seal Y39098160
16	Y-35K07000	Right-hand cone seal Y35K07000
17	Y-33F98040	Driver plate with seal Y33F98040
18	Y-33012000	Driver plate seal Y33012000
19	Y-33E98120	Lock washer Y33E98120
20	Y-33Z08000	Stop washer Y33Z08000
21	Y-33Z07020	Right-hand lock nut (3.4 mm) Y33Z07020
22	Y-31Z06020	Lock nut for left-hand cone Y31Z06020
23	Y-33M37000	Left-hand cone Y33M37000
24	Y-31Z07000	Left-hand dust cap Y31Z07000
25	Y-32190220	Ball retainer A (1/4" x 7) Y32190220
26	Y-35B05000	Right-hand dust cap B Y35B05000
27	Y-33Z26000	Right-hand dust cap C Y33Z26000
28	Y-31414010	Cap nut (3/8") Y31414010
28	Y-20003000	Hub nut (9 mm) Y20003000
29	Y-22006040	Washer (3.2 mm) Y22006040
30	Y-33M39510	Non-turn washer 5L (brown) Y33M39510
30	Y-33M39610	Non-turn washer 6L (white) Y33M39610
30	Y-33M39710	Non-turn washer 7L (gray) Y33M39710
30	Y-34R85000	Non-turn washer 8L (dark green) Y34R85000
30	Y-33M9802T	Non-turn washer 9L (light brown) Y33M9802T
31	Y-32203200	Sprocket 16T (Black) Y32203200
31	Y-73T21830	Sprocket 18T (Black) Y73T21830
31	Y-73T21930	Sprocket 19T (Black) Y73T21930
31	Y-73T22030	Sprocket 20T (Black) Y73T22030
31	Y-73T22130	Sprocket 21T (Black) Y73T22130
31	Y-73T22230	Sprocket 22T (Black) Y73T22230
31	Y-73T22330	Sprocket 23T (Black) Y73T22330
32	Y-32120100	Snap ring C Y32120100
33	Y-74Y18000	Driver cap Y74Y18000
34	Y-74Y98170	CJ-NX40 Cassette joint unit Y74Y98170
35	Y-33Z98020	Cassette joint fixing ring Y33Z98020
36	Y-33Z20500	Non-turn washer 5R (yellow) Y33Z20500
36	Y-33M39600	Non-turn washer 6R (silver) Y33M39600
36	Y-33M39700	Non-turn washer 7R (black) Y33M39700
36	Y-34R85010	Non-turn washer 8R (dark blue) Y34R85010
36	Y-33M9801T	Non-turn washer 9R (light green) Y33M9801T
37	Y-74Y98030	Inner cable fixing bolt unit Y74Y98030
38	Y-04130100	Internal hub grease (100 g) Y04130100
38	Y-04130200	Internal hub grease (2.5 kg) Y04130200
39	Y-30889000	TL-7S40-B Right-hand cone tool Y30889000
40	Y-00298010	Internal hub maintenance oil set Y00298010
41	Y-00201000	Internal hub maintenance oil (1 L) Y00201000
42	Y-00201100	Bottle Y00201100
