Shimano SG-C3001-7C-DX (-4220B) Nexus 7-Gang Nabenschaltung

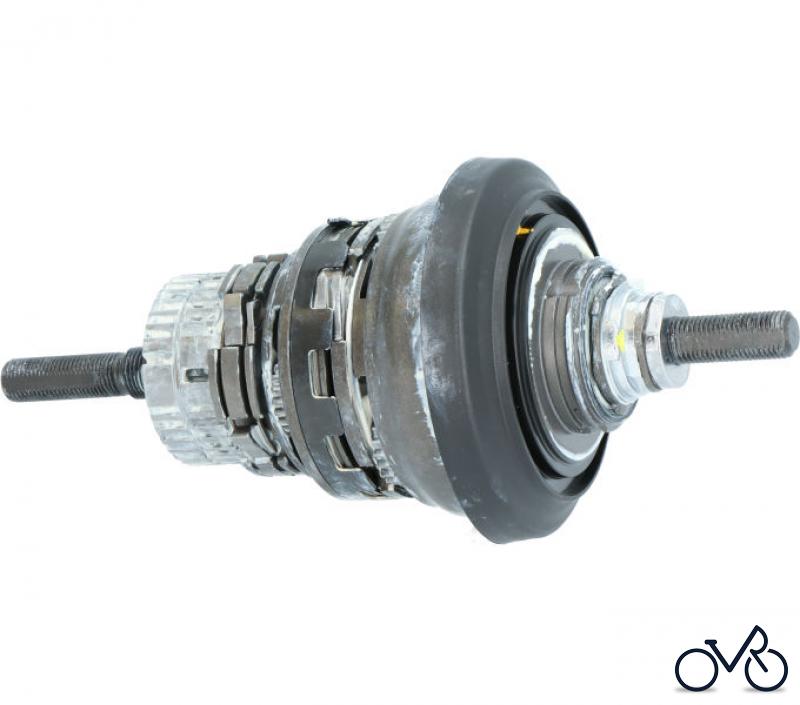

Internal Assembly (Axle Length 175.5 mm) & Brake Arm Unit (Silver/DX) B B

Numéro d'article:

Y-3EV98090

Pos.:

175,5 mm Achslänge Silber inkl. Bremsarm

124.95 €

Y compris la TVA dans UE, + frais d'envoi.

Coordonnées Sécurité des produits

L'article a été placé dans le panier.

Sera commandé pour vous. Délai de livraison environ 5 à 14 jours ouvrables.

Shimano SG Getriebenabe /Nabenschaltung SG-C3001-7C-DX (-4220B) Nexus 7-Gang Nabenschaltung

Vous trouverez ici le dessin des pièces détachées pour Shimano SG Getriebenabe /Nabenschaltung SG-C3001-7C-DX (-4220B) Nexus 7-Gang Nabenschaltung. Sélectionnez la pièce détachée pour vélo désirée dans la liste des pièces détachées pour votre Shimano vélo et commandez simplement en ligne. Nous avons toujours beaucoup de pièces détachées Shimano en stock pour vous.

Pos.	Numéro d'article	Description
1	Y-3EV98010	Internal Assembly (Axle Length 175.5 mm) DX B B Y3EV98010
1	Y-3EV98020	Internal Assembly (Axle Length 184 mm) DX B Y3EV98020
2	Y-38R98040	Brake Shoe Unit A Y38R98040
3	Y-32532000	Stop Ring ( ø9 mm) A A Y32532000
4	Y-3EV98030	Carrier Unit 2 Y3EV98030
5	Y-35K98040	Ring Gear Unit 2 A A Y35K98040
6	Y-3EV09000	Sun Gear 3 Y3EV09000
7	Y-38R11000	Sun Gear Guide Ring 2 A Y38R11000
8	Y-3EV08000	Sun Gear 2 Y3EV08000
9	Y-38P98050	Carrier Unit 1 A Y38P98050
10	Y-35K98050	Ring Gear Unit 1 A A Y35K98050
11	Y-3EV98220	Ball Retainer H (3/16" x 26) Y3EV98220
12	Y-3EV98040	Axle & Driver Unit (Axle Length 175.5 mm) w/Right Hand Dust Cap B & C (DX) Y3EV98040
12	Y-3EV98050	Axle & Driver Unit (Axle Length 184 mm) w/Right Hand Dust Cap B & C (DX) Y3EV98050
13	Y-35K06000	Right Hand Dust Cap B (DX) A A Y35K06000
14	Y-33Z26000	Right Hand Dust Cap C A A Y33Z26000
15	Y-33Z98020	Cassette Joint Fixing Ring A A Y33Z98020
16	Y-3EV98060	Axle Unit (Axle Length175.5mm) Y3EV98060
16	Y-3EV98070	Axle Unit (Axle Length184mm) Y3EV98070
17	Y-33024000	Return Spring A A A Y33024000
18	Y-33Z10000	Gear Shifting Cam A A Y33Z10000
19	Y-3EV02000	Feed Cam Y3EV02000
20	Y-35K98080	Driver Unit A A Y35K98080
21	Y-33091600	Ball Retainer F (3/16" x 12) A A Y33091600
22	Y-39098160	Right Hand Cone w/Seal A A Y39098160
23	Y-35K07000	Right Hand Cone Seal A A Y35K07000
24	Y-33F98040	Driver Plate w/Seal A A Y33F98040
25	Y-33012000	Driver Plate Seal A A Y33012000
26	Y-33E98120	Lock Washer A A Y33E98120
27	Y-33Z08000	Stop Washer A A Y33Z08000
28	Y-33Z07020	Right Hand Lock Nut (3.4 mm) A A Y33Z07020
29	Y-31414010	Cap Nut (3/8") A A Y31414010
30	Y-33Z20500	Non-turn Washer 5R (Yellow) A A Y33Z20500
30	Y-33M39600	Non-turn Washer 6R (Silver) A A Y33M39600
30	Y-33M39700	Non-turn Washer 7R (Black) A A Y33M39700
31	Y-33M39510	Non-turn Washer 5L (Brown) A A Y33M39510
31	Y-33M39610	Non-turn Washer 6L (White) A A Y33M39610
31	Y-33M39710	Non-turn Washer 7L (Gray) A A Y33M39710
32	Y-32138040	Lock Nut (3.5 mm) A A Y32138040
33	Y-33548110	Stop Nut A A Y33548110
34	Y-38R98130	Brake Arm Unit (Silver/DX) A A Y38R98130
34	Y-3EV98080	Brake Arm Unit (Black/DX) B B Y3EV98080
35	Y-3EV98090	Internal Assembly (Axle Length 175.5 mm) & Brake Arm Unit (Silver/DX) B B Y3EV98090
35	Y-3EV98100	Internal Assembly (Axle Length 175.5 mm) & Brake Arm Unit (Black/DX) B B Y3EV98100
35	Y-3EV98110	Internal Assembly (Axle Length 184 mm) & Brake Arm Unit (Silver/DX) B Y3EV98110
35	Y-3EV98120	Internal Assembly (Axle Length 184 mm) & Brake Arm Unit (Black/DX) B Y3EV98120
36	Y-3EV98130	Brake Shoe Unit & Brake Arm Unit (Silver/DX) B A Y3EV98130
36	Y-3EV98140	Brake Shoe Unit & Brake Arm Unit (Black/DX) B B Y3EV98140
37	Y-38R98190	Ball Retainer B (3/16" x 16) A A Y38R98190
38	Y-32203220	Sprocket Wheel 16T (Silver) A A Y32203220
38	Y-32203420	Sprocket Wheel 18T (Silver) A A Y32203420
38	Y-32203520	Sprocket Wheel 19T (Silver) A A Y32203520
38	Y-32203620	Sprocket Wheel 20T (Silver) A A Y32203620
38	Y-33060000	Sprocket Wheel 21T (Silver) A A Y33060000
38	Y-33060100	Sprocket Wheel 22T (Silver) A A Y33060100
38	Y-33060200	Sprocket Wheel 23T (Silver) A A Y33060200
39	Y-32120100	Snap Ring C A A Y32120100
40	Y-74Y98050	CJ-NX10 Cassette Joint Unit A A Y74Y98050
40	Y-74V98010	CJ-NX10 Cassette Joint Unit for Belt drive system Y74V98010
40	Y-74Y98100	CJ-NX40 Cassette Joint Unit Y74Y98100
41	Y-74Y18000	Driver Cap A A Y74Y18000
42	Y-74Y93100	CJ-NX10 Cassette Joint A A Y74Y93100
42	Y-74V98020	CJ-NX10 Cassette Joint for Belt drive system Y74V98020
42	Y-74Y98090	CJ-NX40 Cassette Joint Y74Y98090
43	Y-74Y98030	Inner Cable Fixing Bolt Unit A A Y74Y98030
44	Y-74Y98160	Outer Casing Holder Unit for CJ-NX40 Y74Y98160
45	Y-33F98090	Brake Arm Clip Unit (5/8") A A Y33F98090
46	Y-75M06000	Clip Bolt (M6 x 16) A A Y75M06000
47	Y-31727200	Clip Nut A A Y31727200
48	Y-13098900	TL-7S20 Hub Spanner (17 mm x 22 mm) 2 pcs. A A Y13098900
49	Y-30889000	TL-7S40-B Right Hand Cone Tool A A Y30889000
50	Y-04120800	Internal Hub Grease (Net. 100g) A A Y04120800
51	Y-00298010	WB maintenance oil set A A Y00298010
52	Y-00201000	WB maintenance oil (1L) A A Y00201000
53	Y-00201100	Bottle Y00201100
