Shimano SG-S7001-11 ALFINE 11-Gang Nabenschaltung

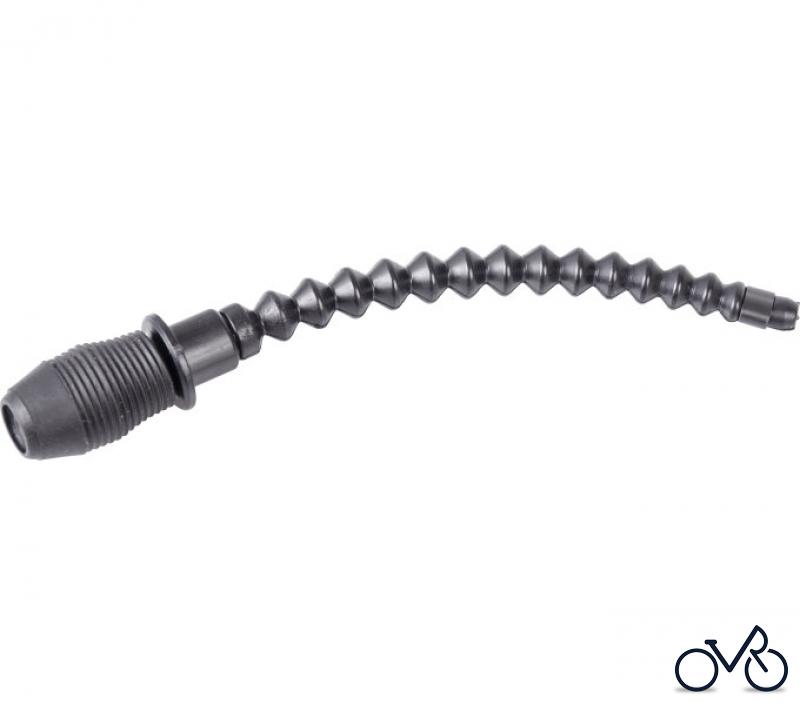

Outer Receiver Unit A

Shimano Outer Receiver Unit A
Numéro d'article:
Y-6TV98060
Pos.:
44
Halter für Aussenhülle komplett für SL-S700
Länge ca. 10,5cm
8.95 €
Y compris la TVA dans UE, + frais d'envoi.
QTE:
Coordonnées Sécurité des produits
L'article a été placé dans le panier.
en stock en stock
Shimano SG Getriebenabe /Nabenschaltung SG-S7001-11 ALFINE 11-Gang Nabenschaltung

Vous trouverez ici le dessin des pièces détachées pour Shimano SG Getriebenabe /Nabenschaltung SG-S7001-11 ALFINE 11-Gang Nabenschaltung. Sélectionnez la pièce détachée pour vélo désirée dans la liste des pièces détachées pour votre Shimano vélo et commandez simplement en ligne. Nous avons toujours beaucoup de pièces détachées Shimano en stock pour vous.

Pos.Numéro d'articleDescription
1 Y-3EN98010 Internal Assembly (Axle Length 187 mm) B Y3EN98010
2 Shimano O-Ring A Y-37E08000 O-Ring A Y37E08000
3 Shimano Stop Ring (ø12 / 1.0 mm) A Y-34R79000 Stop Ring (ø12 / 1.0 mm) A Y34R79000
3 Y-34R79010 Stop Ring (ø12 / 1.3 mm) A Y34R79010
3 Y-34R79020 Stop Ring (ø12 / 1.6 mm) A Y34R79020
4 Shimano Carrier Hold Plate A Y-37R78000 Carrier Hold Plate A Y37R78000
5 Shimano Carrier 3 Slide Spring A Y-37R80000 Carrier 3 Slide Spring A Y37R80000
6 Shimano Sun Gear 4 Slide Spring A Y-37R81000 Sun Gear 4 Slide Spring A Y37R81000
7 Shimano Carrier 3 Unit A Y-37R98020 Carrier 3 Unit A Y37R98020
8 Y-3EN09000 Sun Gear 4 Y3EN09000
9 Shimano Sun Gear 3 Guide Ring A Y-37R56000 Sun Gear 3 Guide Ring A Y37R56000
10 Y-3EN98020 Carrier 2 Unit Y3EN98020
11 Y-3EN07000 Sun Gear 2 Y3EN07000
12 Y-3EN98030 Carrier 1 Unit Y3EN98030
13 Shimano Ball Retainer S (3/16" x 26) A Y-37R98050 Ball Retainer S (3/16" x 26) A Y37R98050
14 Shimano Hub Axle Unit (Axle Length 187 mm) Y-3EN98040 Hub Axle Unit (Axle Length 187 mm) Y3EN98040
15 Y-3EN98050 Clutch Unit Y3EN98050
16 Shimano Return Spring A A Y-34R21000 Return Spring A A Y34R21000
17 Y-3EN98060 Driver Unit B Y3EN98060
18 Shimano Ball Retainer P (3/16" x 13) A Y-34R98070 Ball Retainer P (3/16" x 13) A Y34R98070
19 Y-37R18000 Seal Ring R A Y37R18000
20 Shimano Right Hand Cone A Y-37R17000 Right Hand Cone A Y37R17000
21 Shimano Drive Plate Seal A Y-37R16000 Drive Plate Seal A Y37R16000
22 Shimano Lock Washer A Y-37R98090 Lock Washer A Y37R98090
23 Shimano Lock Washer Seal A Y-37R15000 Lock Washer Seal A Y37R15000
24 Shimano Joint Nut Stop Washer A Y-37R12000 Joint Nut Stop Washer A Y37R12000
25 Shimano Serated Lock Nut (4.4 mm) A Y-37R11000 Serated Lock Nut (4.4 mm) A Y37R11000
26 Y-37R98100 Right Hand Dust Cap A w/Seal A Y37R98100
27 Shimano Chain Guard A Y-35Z20000 Chain Guard A Y35Z20000
28 Shimano Right Hand Dust Cap D A Y-37R75000 Right Hand Dust Cap D A Y37R75000
29 Y-37R74000 Rotor Mount Cover A Y37R74000
30 Y-37R82000 Rotor Spacer A Y37R82000
31 Y-72A01000 Cap Nut (3/8") A Y72A01000
32 Shimano Non-turn Washer 8R (Dark Blue) A Y-34R85010 Non-turn Washer 8R (Dark Blue) A Y34R85010
33 Shimano Non-turn Washer 8L (Dark Green) A Y-34R85000 Non-turn Washer 8L (Dark Green) A Y34R85000
34 Shimano Left Hand Cone w/Dust Cap A Y-37R98110 Left Hand Cone w/Dust Cap A Y37R98110
35 Shimano Seal Ring L A Y-37R73000 Seal Ring L A Y37R73000
36 Shimano Ball Retainer (7/32" x 9) A Y-36U98030 Ball Retainer (7/32" x 9) A Y36U98030
37 Shimano Oil Port Bolt (Silver) & O-Ring A Y-37R98120 Oil Port Bolt (Silver) & O-Ring A Y37R98120
37 Shimano Oil Port Bolt (Black) & O-Ring A Y-37R98130 Oil Port Bolt (Black) & O-Ring A Y37R98130
38 I-CSS50018 Sprocket Wheel 18T w/Guard Plate (CS-S500) A ICSS50018
38 I-CSS50020 Sprocket Wheel 20T w/Guard Plate (CS-S500) A ICSS50020
39 Shimano Snap Ring C A Y-32120100 Snap Ring C A Y32120100
40 Shimano CJ-S700 Cassette Joint Unit A Y-72A98010 CJ-S700 Cassette Joint Unit A Y72A98010
40 Y-72A98030 CJ-S700 Cassette Joint Unit for Belt drive system Y72A98030
41 Shimano Driver Cap A Y-74Y18000 Driver Cap A Y74Y18000
42 Shimano CJ-S700 Cassette Joint A Y-72A98020 CJ-S700 Cassette Joint A Y72A98020
42 Y-72A98040 CJ-S700 Cassette Joint for Belt drive system Y72A98040
43 Shimano Cassette Joint Fixing Ring A Y-33Z98020 Cassette Joint Fixing Ring A Y33Z98020
44 Shimano Outer Receiver Unit A Y-6TV98060 Outer Receiver Unit A Y6TV98060
45 Shimano Inner Cable Fixing Bolt Unit A Y-6TV98070 Inner Cable Fixing Bolt Unit A Y6TV98070
46 Y-13098024 TL-S700 Inner Cable Fixing Bolt Setting Tool A Y13098024
47 Y-13098021 TL-S701 Right Hand Cone Removal Tool A Y13098021
48 Y-13098022 TL-S702 Right Hand Cone Installation Tool A Y13098022
49 Y-70819000 TL-S704 Seal Set Tool A Y70819000
50 Y-32010000 TL-AF10 Right Hand Dust Cap A Installation Tool A Y32010000
51 Y-13098023 TL-S703 Oil Kit A Y13098023
52 Y-13098025 Tube Set (Tube & Bleeding Nipple) A Y13098025
53 Y-13098480 SG-S700 Oil (1 L) A Y13098480
54 Y-13098481 SG-S700 Oil (50 ml) A Y13098481
0 Y-37R07000 Right Hand Hub Cup Y37R07000
